Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Specifications
Brand Name :
BM
Model Number :
BMINSULAATION
Certification :
ISO
Place of Origin :
CHINA
MOQ :
3tons
Price :
1.1-2.2usd/kg
Payment Terms :
T/T, L/C
Delivery Time :
7-15 working days
Packaging Details :
1.bubble film, to protect from collision during transportation 2.specified label, factory label or customized label without factory information 3.different types of packing ways according to roll size or customer's request 4.Standup pallet, Suspenderd pall
Product Name :
Aluminum Foil Woven fabric insulation
Color :
Silver
Application :
Roof Wall and Floor Insulation for Building
Material :
Pet Film, Aluminum, Polyethylene
Thickness :
7-50 Mic
Length :
Customized, 30-2000 M
Width :
Customized, 1m, 1.2m, 1.22m, 1.35m
Function :
Heat Insulation, Facing, House Wrap
Reflectivity :
95 - 97%
Description

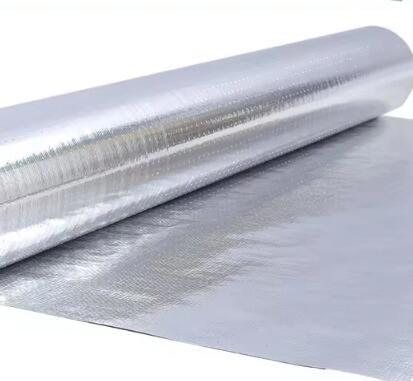

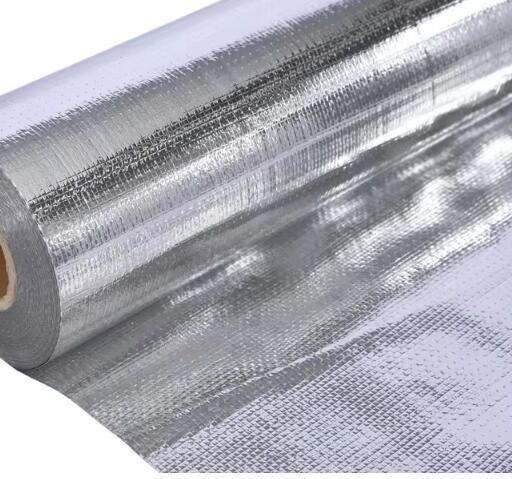

Single or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation

Aluminum Foil woven fabric Radiant Barrier
Aluminum Foil woven fabric Radiant Barrier is a material that is a poor transmission of radiant energy. This product is made of double-sided metalized aluminum and woven fabric. By definition, this re-transmission characteristic (emissivity) must be at or below 10%. The emissivity of our Aluminum Foil woven fabric Radiant Barrier is about 0.1. Therefore, when a radiant barrier is installed in a residential attic roof, it block about 90% of the radiant energy that is being radiated by the hot Roofing materials. This is a cooler attic, resulting in a house that requires less air conditioning usage to maintain comfortable inside temperature.
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Typical Physical Properties
Item Name
Aluminum Foil woven fabric Radiant Barrier
Material Structure
Aluminum Foil woven fabric Radiant Barrier
Type
Solid or Perforated
Material Structure
Metalized Aluminum + PE+ woven+ PE+ Metalized Aluminum
Aluminum Thickness
7um, 12um or customized
Width
1m,1.2m,1.22m,1.5m ect accordign to your requirements(Max Width:2m)
Density
75g/m2 - 150g/m2
Thickness
0.13mm or 5 mil
Tear Strength
11.2IBF(MD)/ 11.85IBF(TD)
Reflectivity
97%
Emissivity
0.1
Water Vapor Performance
Water proof 0.013 g/m2kpa
Mold and Mildew
No growth
Corrosion
Doesn't generate
Fire proof
CLASS A
Application Conditions
-50ºC~80ºC
Please note that : Customized items are acceptable. We can do it with aluminum foil or metallized foil. The size,
density,thickness can be changed according to your requirements.

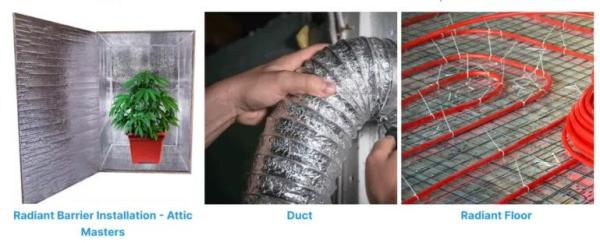

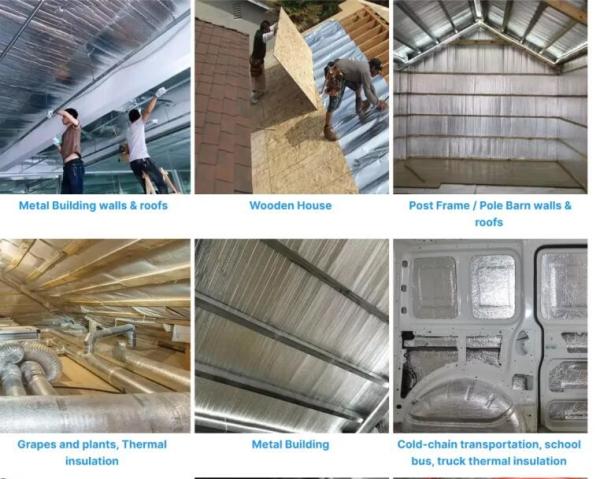

Application
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
Single Or Double Reflective Woven Fabric Aluminum Foil Backed Woven Fabric Heat Insulation
