4X4 Matrix SS Metal Keypad Rugged R232 Rugged For Bank Kiosk
4X4 Matrix SS Metal Keypad Rugged R232 Rugged For Bank Kiosk
4X4 Matrix SS Metal Keypad Rugged R232 Rugged For Bank Kiosk
4X4 Matrix SS Metal Keypad Rugged R232 Rugged For Bank Kiosk
Specifications
Brand Name :
CNKHTECH
Model Number :
KH-EA-100
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
1-2 weeks
Packaging Details :
2 pcs/EPE/inner box, 30boxes/ctn
Material :
Stainless Steel
Keys :
16 (4x4 Design)
Protection Level :
IP65
Interface :
PS2 /USB /R232
Operating Temperature :
-20º C to + 60º C
Product Name :
Metal Keypad
Description

Rugged Stainless Steel Metal Keypad 4 x 4 Matrix for Bank Kiosk

Product Features:

• 16 Keys Metal keypad in 4x4 Matrix
• Metal dome connect PCB key switch technology
• Laser engraved characters for excellent durable.

• PS/2, R232 or USB connector are available.
• Rear panel w/hole mounting solution
• Waterproof ,dust proof, vandal proof.

• All international language lay-out are available.

Applications:

•This Metal Keypad is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations, ticket vending machines, gas stations, Internet public phones etc.

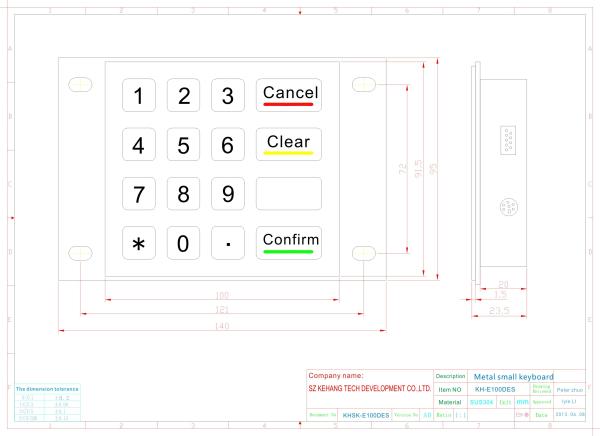

Technical Specifications

MECHANICAL DATA

 Material: Super quality SUS304 Brushed stainless steel
Keypad Layout: 4 x 4 design,10 numerical keys and 6 function keys
Key top style: Flat keys, laser engraved & etched graphics & raised braille on keys are available
Stroke travel: 0.45mm
Switch life: more than 1 million of per key
OS: All windows, Linux, Unix, Mac OSX
N.W.: 0.45 KGs

ELECTRICAL DATA

 Supply Voltage: 5.0V DC±5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2:2010
EN55024: 1998+A1:2001+A2:2003
Lifespan: > 5 years
ENVIRONMENTAL ADAPTABILITY Operating temperature: -20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 20-95%
Atmospheric pressure: 60-106Kpa.
RELIABILITY Protection Level: IP65(front panel)
Vandal resistant: IK10
Key Lifespan: >10 million actuations
MTBF: >5,0000H
MTTR: <30min
