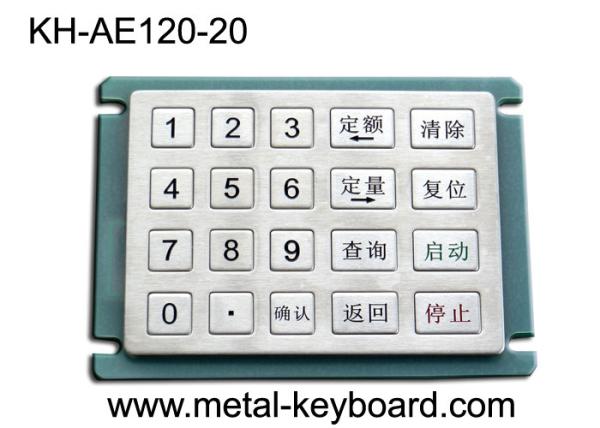

Rugged Stainless steel Keyboard Gas Station Keypad with 20 Keys 5x4 Matrix
Rugged Stainless steel Keyboard Gas Station Keypad with 20 Keys 5x4 Matrix
Specifications
Brand Name :
CNKHTECH
Model Number :
KH-AE120-20
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
5000pcs/month
Delivery Time :
1-2 weeks
Packaging Details :
2 pcs/EPE/inner box, 30boxes/ctn
Material :
Stainless steel
Keys :
20 (5x4 Design)
Protection Level :
IP65
Interface :
Matrix output
Operating Temperature :
-20º C to + 60º C
Product Name :
Gas Station Keypad
Dimensions :
120 X 90 (Front Panel)
Mounting Method :
Rear Panel Mounting Solution
Description

Rugged Stainless steel Gas Station Keypad with 20 Keys 5x4 Matrix

Product Features:

• 20Keys Gas Station Keypad

• Rugged Stainless steel material design

• Anti-vandal, IP65 water-proof & long life.
• All international language lay-out are available.
• PS/2 or USB connector are available.
• Rear panel mounting Solution.

Technical Specifications

Material Environmental Characteristics

ELECTRICAL DATA
• Stainless steel panel and keys guard willful destruction, vandal-proof, against corrosion,

• Operating temperature: -20°C to + 60°C

• Storage temperature: - 40°C to + 80°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003
Operation system Reliability Mechanical Data
• It is compatible to All windows, Linux, Unix, Mac OSX

• MTBF >5,0000H

• MTTR <30min

• Key switch lifespan:more than 10 Mio actuations

• Lifespan > 5 years

Applications:
  • This keypad is ideal for applications in the public areas and harshest conditions, such as CNG / LPG Dispenser,Gas Station, LPG filling station, LNG gas dispenser, etc.
