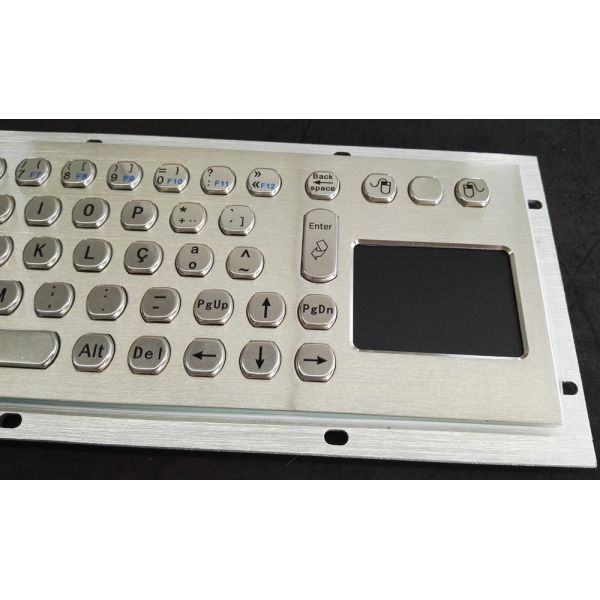

70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad
70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad
Specifications
Brand Name :
CNKHTECH
Model Number :
KH-K68-370TP
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
2000pcs/month
Delivery Time :
1-2 weeks
Packaging Details :
1pcs/EPE/inner box, 10boxes/ctn
Material :
Stainless Steel
L X W (MM) :
370 x110mm(Front Panel)
No. Of Keys :
(67+ 3) keys
Mouse detail :
Touchpad Mouse
Layout :
Internet friendly key layout
Interface :
USB, PS/2, Others
Description

Rugged 70 Keys Industrial Kiosk Keyboard with Touchpad Keyboard

PRODUCT FEATURES -


> 67 PC-keyboard layout with touchpad, front panel and additonal 3 mouse buttons

> Protruding full travel keys,key travel:2.0mm,this provides a pretty tactile feel for users

> Be strictly according to IP65 regulation for water-proof,dust-proof,vandal-proof performance

> PS/2 or USB interface, plug and play,no extra software is needed

> Friendly layout and any language is available and it’s free of additional charge

Material:

> Front panel & Keys: Brushed 304 stainless steel

> Back panel: Aluminum alloy

> Key cap: Protruding full travel key(2.0mm) with etched graphics

> Trackball: Stainless steel(Dia: 25mm)


APPLICATION -

The Vandal resistant Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.


TECHNICAL DATA -

> Mechnical Data

Dimension:

 (W x H): 370 x122 mm (Front panel)

Key & Front panel

 SUS304 Brushed stainless steel material

Touchpad thickness

 1.3 mm PCB thickness inclusive of mylar layer

Switch Life

 >1 million of per key

Touchpad lifespan

 > 10 Mio times

Mounting Rack

Rear aluminum panel w/hole mounting solution

Back Metal Cover

 Rear side integrated electronics protected by a metal cover
Operation System ALL WINDOWS/Vista/Linux,Unix,MacOSX,iOS, Android



> Electrical Data

Supply Voltage


5.0V DC±5%

Current Rating


Appr. 30mA

EMC Standard


Council EMC directive 2004/108/EC

EN55022


2006+A2:2010

EN55024


1998+A1:2001+A2:2003

Lifespan


> 5 years



> Environmental Adaptability

Operating temperature


-20°C to +60°C

Storage temperature


-30°C to +70°C

Operating RH


20-95%

Atmospheric pressure


60-106Kpa.


> Reliability

CompliantStandard


RoHS , CE and FCC

Protection Level


IP65(front panel)

Vandal resistant


IK10

Key Lifespan


>1 million actuation

MTBF


>50000H


MTTR


<30min


70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad
