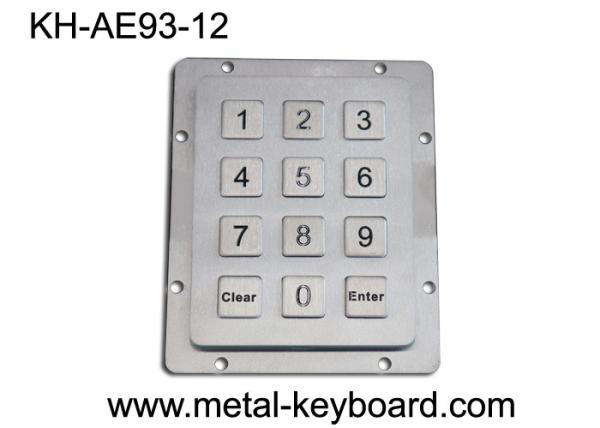

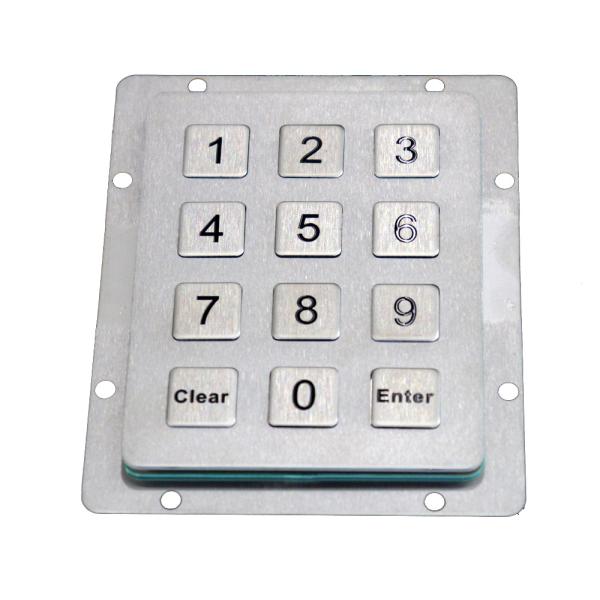

IP65 Waterproof Ruggedized Metal Keypad 12 Keys Industrial Stainless Steel Keypad
IP65 Waterproof Ruggedized Metal Keypad 12 Keys Industrial Stainless Steel Keypad
Specifications
Brand Name :
CNKHTECH
Model Number :
KH-AE93-12
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
1-2 weeks
Packaging Details :
6pcs/EPE/inner box, 30boxes/ctn
Material of front panel :
Stainless Steel
Keys :
12
Connector :
Matrix output; PS/2 or USB
Design and layout :
Customization available
Protection Level :
Waterproof; NEMA4x
Dimension :
93.5 x 72.5mm(Front Panel)
Description

Waterproof uggedized Metal Keypad , 12 Keys Industrial stainless steel keypad

Product Features:

  • DIMENSIONS: 93.5mm x 72.5mm (front panel)
  • 12 flat keys design numeric keypad in 4 x 3 Layout.
  • Water-proof,dust-proof,vandal-proof,shake-proof
  • Laser engraved characters for excellent durable.
  • Front panel mounting solution
  • Matrix output; Also PS/2 or USB connector are available.
  • Customized layout is available

APPLICATION -

  • The IP65 waterproof ruggedized keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.



TECHNICAL DATA -

Material

Front panel & Keys: SUS304 Stainless steel
Back panel: Stainless steel

ELECTRICAL DATA

Interface: Matrix, USB or PS2
Supply Voltage 5.0V DC±5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council EMC directive 2004/108/EC
EN55022: 2006+A2:2010
EN55024: 1998+A1:2001+A2:2003

Environmental Characteristics

Operating temperature: -20 C to + 60 C
Storage temperature: - 40 C to + 80 C
Operating RH: 20-95%
Atmospheric pressure: 60-106Kpa.
Mechanical Data Key switch lifespan more than 10 Mio actuations
Trackball lifespan > 10 Mio revolutions
Lifespan > 5 years
Reliability MTBF >5,0000H
MTTR <30min
Operation system

WINDOWS98/ME/2000/2003/XP/WIN7/8/10, Vista/Linux,Unix,Mac OSX,iOS, Android
