High Precision Jewelry Welding Machine , 200W YAG Laser Spot Welding Machine
High Precision Jewelry Welding Machine , 200W YAG Laser Spot Welding Machine
Specifications
Brand Name :
Linxuanlaser
Model Number :
LX-D7
Certification :
CE FDA ISO
Place of Origin :
Wuhan,China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Packaging Details :
Standard exporting wooden package box
Laser Type :
YAG
Use for :
Weld Jewelry Gold Sliver Platinum
name :
Laser Welding Equipment
Laser power :
200w,400w
Model name :
Jewelry Laser Spot Welding Machine
Power supply :
220V /50HZ
Dimensions :
920mm*560mm*1220mm
Weight :
270KG
Description

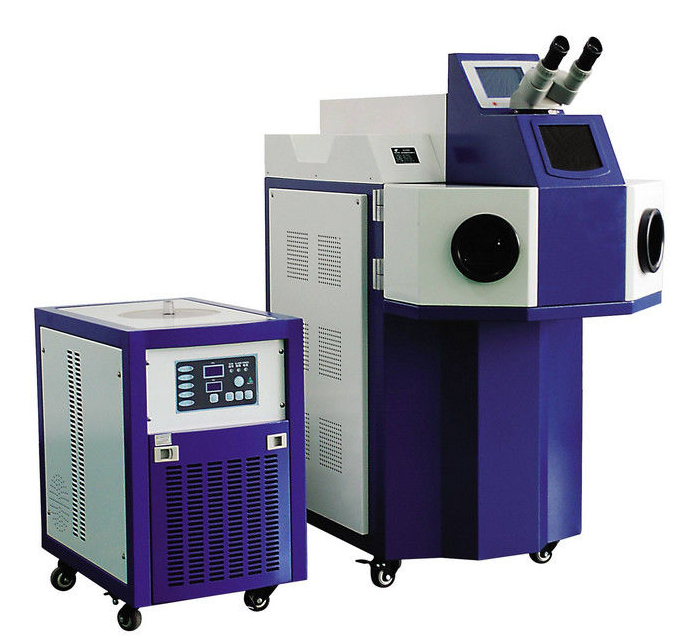

200W High Precision YAG Jewelry Laser Spot Welding Machine for Gold and silver

Desription:

1. Ceramic converging cavity made in UK: corrosion resistant and high temperature resistant, with 8-10 years service life. The life of xenon lamp bears more than 8 million times flashing.

2. Most advanced light shielding system can eliminate the irritation to eyes by laser during working.

3. The laser head can rotate for 360°, lift up and down, move left and right, go forward and backward .

4. The parameters are controlled by intelligent remote controller, which is simple and convenient for the operator.

5. The work bench can be lifted, and moved in three dimensions.

6. The size of light spot can be adjusted accordingly and automatically.

High Precision Jewelry Welding Machine , 200W YAG Laser Spot Welding Machine

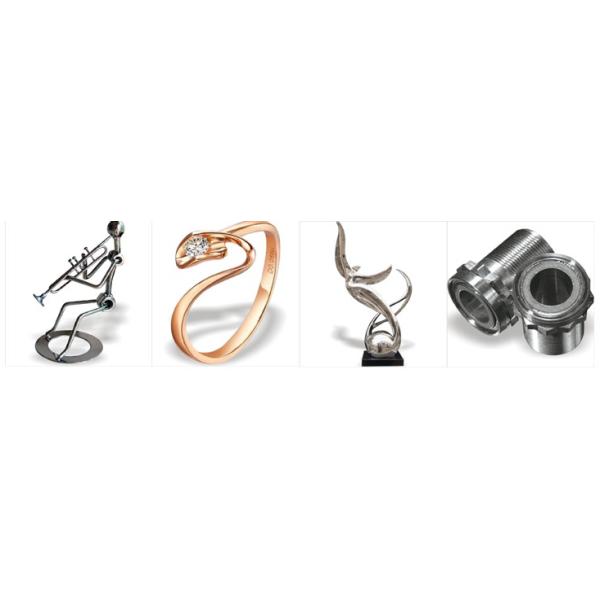

Application of Jewelry Laser Welding Machine

This Laser Welding Machine is designed to weld the Jewelries, like gold, sliver, platinum, brass, aluminum-magnesium alloy, titanium, etc.

High Precision Jewelry Welding Machine , 200W YAG Laser Spot Welding Machine

Technical Parameters

Parameter Description
Model No. Jewelry Laser Welder CY-W150/CY-W200
Laser source Nd3+: YAG
Laser wavelength 1064nm
Max.Laser power 150W/200W
Single-pulse energy 60J/80J
Pulse width 0.2-20ms
Frequency range 0-50Hz
Welding pool diameter 0.3-1mm
Facula diameter 0.1-3.0mm
Observing system Mircoscope
Chamber illumination LED lamps
Paramters memorization 10 groups
Protection alert Flow Alert
Language display Chinese/English
Shield gas supply One Line
Cooling Water cooling
Power consumption 5KW/6KW
Power supply of laser 220V /50HZ
Power supply of chiller 220V/50HZ, 1HP
Welding chamber dimensions 300mm*450mm*150mm (L*W*H)
Machine dimensions 920mm*560mm*1220mm (L*W*H)
Running environment

5℃-30℃ 5%-75% humidity
Net weight 130kg(welder)+50kg(chiller)
