Specifications
Brand Name :
Linxuan
Model Number :
LX-6090
Certification :
CE FDA
Place of Origin :
Wuhan, Hubei
MOQ :
1 set
Price :
USD 3000-8000 set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 sets per month
Delivery Time :
5-15 working days
Packaging Details :
wooden case
Product Name :
Co2 Laser Engraving Machine
Engraving Area :
600*900mm
Cooling Mode :
water cooling
Engraving Speed :
0-6000mm/s
Port :
USB
Power :
220V/50Hz/1KVA
Description

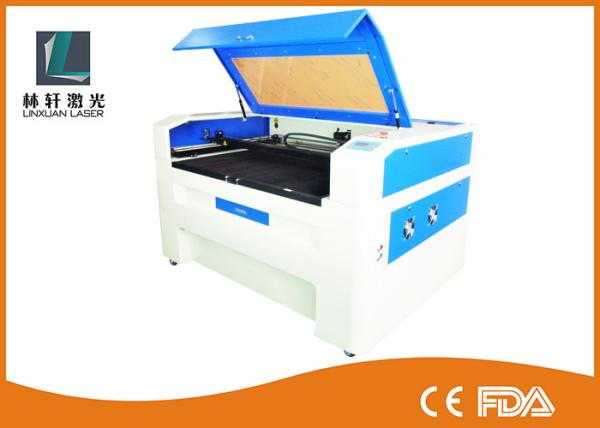

small size 1390 co2 laser engraving and cutting machine for non-metal material

Product Features


1. Meet the demand of professional users' requirement of engraving on large size stone.
2. With stable and perfect design concept, equipped with advanced industrial cooling system and Automatic water alarm system, greatly improved the stability and safety of continuous working.
3. Unique closed design of smoke exhaust system eliminates smoke leaking, and ensures the perfect and clean working environment.
4.With powerful edition software and strong compatibility, it can support BMP, PLT, AL, DST, DXF etc. File format.


Application

1. Marble industry: image and character engraving on the surface of marble.
2. Advertising industry: engraving and cutting on advertising materials such as
Acrylic, double color board and so on.
3. Leather and clothing industry: engraving and carving on leather and fabric.
4. Art & Craft industry: engraving and cutting on paper, wooden packing box, bamboo craft, leather, shell, ivory and so on.
5. Model industry: cutting on architectural model, aviation and navigation model, and wooden toys.
6. Packaging industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.
7. Decoration industry: engraving and cutting on electric products and relevant materials.

Applied Material:

Plexiglass, Acrylic, PVC, Leather, Textile, Cloth, Rubber, Plastic, Wood, Paper, Stone etc. non-metal materials.

Specifications

Item: LX-6090
Laser Type: CO2 Laser Tube
Laser Wavelength: 10.64um
Laser Power: 60w/80W/100W/130W/180W
Working Area: 600*900mm/1300*900mm
Engraving Speed: 0-30000mm/min
Cutting Speed: 0-3600 mm/min
Cutting Thickness 0-10mm (Varies to different materials)
Machine Power: 300-450W
Location Type: Red Pointer positioning
Location Accuracy ±0.1mm
Resolution: 1000dpi
Port: USB 2.0
Working Table: Honeycomb table
Up-down height: 0-300mm
Mini Text Height: English Letter: 1mm Chinese:2mm
Support Software: Windseal XP / CorelDraw
Working Voltage: AC220V/50HZ AC110V/50HZ
Working Environment: Temperature:0-45℃ Humidity:5%-95%
Driver Way: Digital Subdividing Step Driver
Laser Device Cooling Type Circulating Water Cooling
Option Item:

Motorized up-down table, Rotary Fixture

Water-circulation Non-normal Protection Switch,

CW-3000 Water Chiller

Rotary System(Optional) φ10-150×300mm


Sample show

Small Size 1390 CO2 Laser Cutting And Engraving Machine With 0 - 6000 Mm/S Speed


Packaging & Delivery

1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder

Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
