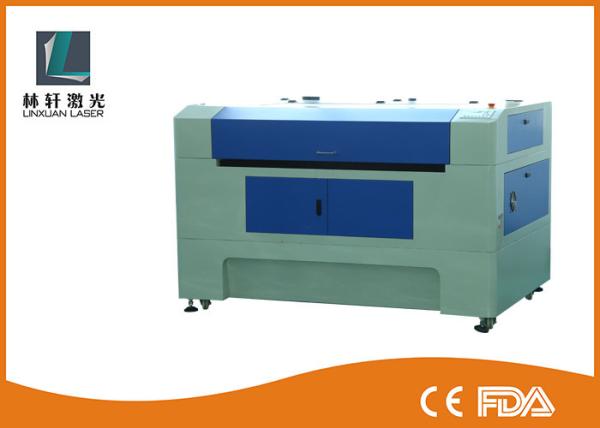

Micro Pencil CO2 Laser Engraving Cutting Machine 10.64um Wavelength With Large Working Size
Micro Pencil CO2 Laser Engraving Cutting Machine 10.64um Wavelength With Large Working Size
Specifications
Brand Name :
Linxuan
Model Number :
LX-1610
Certification :
CE FDA
Place of Origin :
Wuhan, Hubei
MOQ :
1 set
Price :
USD 3000-8000 set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 sets per month
Delivery Time :
5-15 working days
Packaging Details :
wooden case
name :
Industrial Laser Engraving Machine
Technical Class :
Continuous Wave Laser
Laser Type :
CO2
Working table type :
Honeycomb
Laser Power :
130W
Working Area :
1600*1000mm
Laser power :
180w
Transport Package :
wooden case
Description

Micro Pencil Large Working Size Co2 laser Engraving Machine For Garment Industry

Product Features

1. The imported linear guide way ensures the high precision and the long service.

2. Economic, cost-effective multi-functional laser cutting machine
3. Five reflection mirrors and one lens design to ensure stable and constant light path, excellent Reliable product quality and overall cutting ability (multi-functional, applicable for cutting stainless steel, carbon steel, acrylic, MDF, die board).
4. Non-contact metal cutting auto-following device, to cut all kinds of materials with less investment.


Application

Engraving and cutting of paper, fabric, plastic, non-woven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials,like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.


Applied Material:

Wood work, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic, crystal, jade, bamboo and other non-metal materials.


Specifications

Item: LX-1390
Laser Type: CO2 Laser Tube
Laser Wavelength: 10.64um
Laser Power: 60W/80W/100W/130W/150W/180W
Working Area: 600*900mm/1300*900mm/1600*1000mm
Engraving Speed: 0-30000mm/min
Cutting Speed: 0-3600 mm/min
Cutting Thickness 0-10mm (Varies to different materials)
Machine Power: 300-450W
Location Type: Red Pointer positioning
Location Accuracy ±0.1mm
Resolution: 1000dpi
Port: USB 2.0
Working Table: Honeycomb table
Up-down height: 0-300mm
Mini Text Height: English Letter: 1mm Chinese:2mm
Support Software: Windseal XP / CorelDraw
Working Voltage: AC220V/50HZ AC110V/50HZ
Working Environment: Temperature:0-45℃ Humidity:5%-95%
Driver Way: Digital Subdividing Step Driver
Laser Device Cooling Type Circulating Water Cooling
Option Item:

Motorized up-down table, Rotary Fixture

Water-circulation Non-normal Protection Switch,

CW-3000 Water Chiller
Rotary System(Optional) φ10-150×300mm




Sample show

Micro Pencil CO2 Laser Engraving Cutting Machine 10.64um Wavelength With Large Working Size


Packaging & Delivery

1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder

Competitive Advantages
​
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
