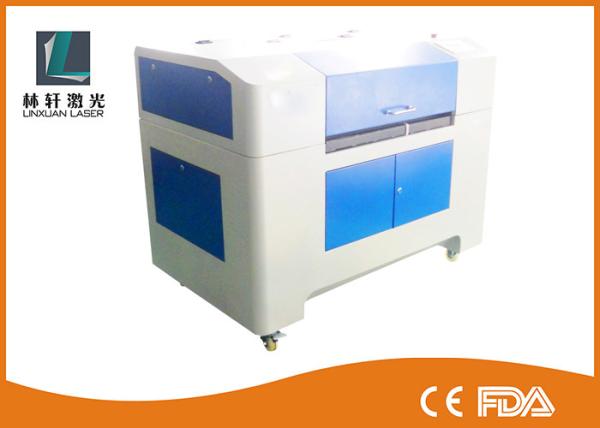

Auto 6090 Co2 Laser Engraving Systems , 100W Desktop Laser Engraving Machine
Auto 6090 Co2 Laser Engraving Systems , 100W Desktop Laser Engraving Machine
Specifications
Brand Name :
Linxuan
Model Number :
LX-6090
Certification :
CE , FDA
Place of Origin :
Wuhan, Hubei
MOQ :
1 set
Price :
USD 3000-8000 set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 sets per month
Delivery Time :
5-15 working days
Packaging Details :
wooden case
Product Name :
Co2 Laser Engraving Machine
Engraving Area :
600*900mm
Cooling Mode :
water cooling
Laser type :
CO2 sealed laser tube
Laser Power :
100W
Location precision :
0.001mm
Description

Auto 6090 CO2 laser engraving machine price with CE GS SGS FDA

Product Features


1. Equipped with imported dual linear guide,so machine can move stably and cut the edge smoothly

2. Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.

3. Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal display brings out much convenient operation and simpler maintenance.Special intelligent pre-calculating system fully develops the potential of the engine and leads to high speed processing of smoother curves and straight lines simultaneously.

4. Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.


Application

Clothing,footwear,luggage,computerized embroidery and clipping,model,electronic appliance, toys, furniture, advertisement decoration,packaging, printing, paper products, handicrafts and other industries.

Applied Material:

Fabric,leather,plexiglass,acrylic,plastic,rubber,tile,wood products,bamboo products,wool,paper materials, ceramics and non-metallic materials.

Specifications

Item: LX-6090
Laser Type: CO2 Laser Tube
Laser Wavelength: 10.64um
Laser Power: 60w/80W/100W/130W/180W
Working Area: 600*900mm/1300*900mm/1600*1000MM
Engraving Speed: 0-30000mm/min
Cutting Speed: 0-3600 mm/min
Cutting Thickness 0-10mm (Varies to different materials)
Machine Power: 300-450W
Location Type: Red Pointer positioning
Location Accuracy ±0.1mm
Resolution: 1000dpi
Port: USB 2.0
Working Table: Honeycomb table
Up-down height: 0-300mm
Mini Text Height: English Letter: 1mm Chinese:2mm
Support Software: Windseal XP / CorelDraw
Working Voltage: AC220V/50HZ AC110V/50HZ
Working Environment: Temperature:0-45℃ Humidity:5%-95%
Driver Way: Digital Subdividing Step Driver
Laser Device Cooling Type Circulating Water Cooling
Option Item:

Motorized up-down table, Rotary Fixture

Water-circulation Non-normal Protection Switch,

CW-3000 Water Chiller
Rotary System(Optional) φ10-150×300mm


Sample show

Auto 6090 Co2 Laser Engraving Systems , 100W Desktop Laser Engraving Machine

Packaging & Delivery

1. Wood case or as per required.

2. The delivery lead time would be 7-15 days against down payment.

3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder


Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
