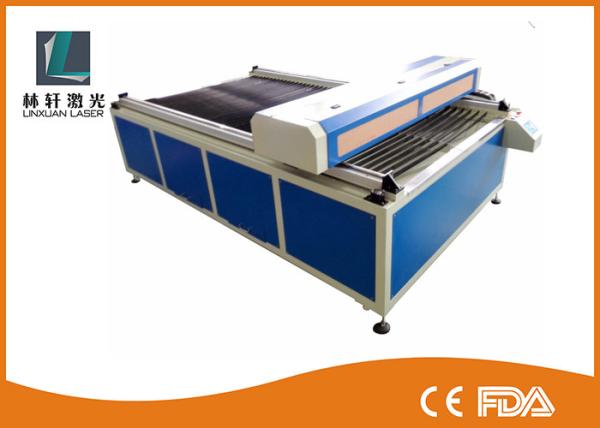

130W Jewelry Laser Cutting Machine , Metal Plate Cutting Machine For Acrylic Sheet
130W Jewelry Laser Cutting Machine , Metal Plate Cutting Machine For Acrylic Sheet
Specifications
Brand Name :
Linxuan Laser
Model Number :
LX-1390
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Delivery Time :
5-8 working days
Packaging Details :
Wooden case
Power :
130W
Cutting Area :
1300×900mm
Engraving Speed :
≤1000mm/s
Motor type :
Japan Stepper motor
Worktable :
aluminum knife optional
Recommended spare parts :
Laser tube, Focal lens, Reflection Mirror
Working temperature :
5-30 °C degree
name :
plywood laser cutting machine
Description

CE Standard Jewelry Used 400 Watt Laser Cutting Machine For Metal Plate , Acrylic Sheet


Features

1. High speed and high precision ,adopts imported servo motor, the double screw gantry drive structure, the imported guide rail, NC system. The machine has good performance with high cutting speed and smooth corner.
2. Long using life, the machine is with long life using the imported metal seal CO2 laser.
3. Good cutting effect, with excellent optical path design, produce a perfect focus spot, small thermal effect.
4. Convenient operation ,convenient data processing with dedicated laser cutting software. File formats include DXF, PLT, etc. Interface is simple and friendly, easy operation.

Application


1.The arts and crafts industry: wood, bamboo, bone, leather, marble and other materials shell carving exquisite designs and text head.
2. Mainly used for color plate engraving, plexiglass engraving cutting, sign engraving, crystal, trophy engraving, sculpture and other licensing authority.
3. Other Activities: marble, granite, glass, crystal and other decorative materials carving marks, paper cutting, greeting cards and other paper craft cutting.

Machine specification

Model LX-1060 LX-6040 LX-1390 LX-1610/1612/1325
Laser CO2 glass sealed laser tube or metallic sealed laser tube
Laser power 40W/60W/80W 60W/80W/100W/120W/150W
Work platform size 1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm
Engraving speed ≤1000mm/s
Cutting speed ≤500mm/s
Worktable honey-comb or aluminum knife optional
Precision of positioning ≤±0.025mm
Working temperature 5-30 °C degree
Control System RDCAM DSP Control system

SoftWare

Laser Cut software

PLT,BMP,DXF,DST,TIF format supported

CorelDraw, AutoCAD Software Compatible
Transmission

Belt transmission (Standard)

Or ball screw transmission optional for extra cost
Linear Rail Taiwan HIWIN linear rail
Motor type: Japan Stepper motor
DPI 2500
Recommended spare parts Laser tube, Focal lens, Reflection Mirror
Power supply 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional
Machine dimension (mm) 1600*1100*1300 1600*800*1050 1950*1470*1300 2280*1730*1180
G.W 230KG 260KG 470KG 550KGS

Sample show

130W Jewelry Laser Cutting Machine , Metal Plate Cutting Machine For Acrylic Sheet

Packaging & Delivery

1. Wood case or as per required.

2. The delivery lead time would be 7-15 days against down payment.

3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder


Competitive Advantages

1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
