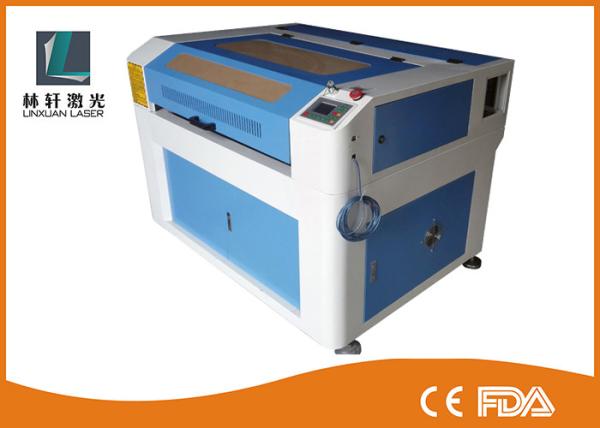

1610 130W CO2 Laser Cutting Machine Energy Saving For Glass Plexiglass Plastic
1610 130W CO2 Laser Cutting Machine Energy Saving For Glass Plexiglass Plastic
Specifications
Brand Name :
Linxuan Laser
Model Number :
LX-1090
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Delivery Time :
5-8 working days
Packaging Details :
Wooden case
Power :
60W, 80W, 100W
Engraving Area :
1000x600mm |600×400mm | 1300×900mm ,1600x1000mm,1200mm ,1300x2500mm
Engraving Speed :
≤1000mm/s
Motor type :
Japan Stepper motor
Worktable :
aluminum knife optional
Precision of positioning :
≤±0.025mm
Working temperature :
5-30 °C degree
SoftWare :
Laser Cut software CorelDraw, AutoCAD Software Compatible
Description

1610 130W CO2 Laser Cutting Machine Acrylic Wood Glass Leather Plexiglass Plastic Rubber


Features

1. Stable machine”s quality, with comprehensive cutting applications
3. Lower investment cost,lower operating cost and lower maintain cost.
4. Non-contact height-adjusting configuration enables to cut almost all materials with lowest cost.
5. Working table:open blade with special treated material.never fray and easy operation,suitable for all kinds of hard materials.
6. Steady chassis:stability and precision during high speed work.
7. Moving system adopts Taiwan HIWIN linear guide and precision gear,matched up with advanced PCI controlled 3-phrase stepper motor to ensure the working accuracy.

Application

Widely used in fine carving , of acrylic ,organosheet,board,bamboo products, paper, glass etc nonmetal material and various kinds of character, graph, image, trademark .

Machine specification

Model LX-1060 LX-6040 LX-1390 LX-1610/1612/1325
Laser CO2 glass sealed laser tube or metallic sealed laser tube
Laser power 40W/60W/80W 60W/80W/100W/120W/150W
Work platform size 1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm
Engraving speed ≤1000mm/s
Cutting speed ≤500mm/s
Worktable honey-comb or aluminum knife optional
Precision of positioning ≤±0.025mm
Working temperature 5-30 °C degree
Control System RDCAM DSP Control system

SoftWare

Laser Cut software

PLT,BMP,DXF,DST,TIF format supported

CorelDraw, AutoCAD Software Compatible
Transmission

Belt transmission (Standard)

Or ball screw transmission optional for extra cost
Linear Rail Taiwan HIWIN linear rail
Motor type: Japan Stepper motor
DPI 2500
Recommended spare parts Laser tube, Focal lens, Reflection Mirror
Power supply 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional
Machine dimension (mm) 1600*1100*1300 1600*800*1050 1950*1470*1300 2280*1730*1180
G.W 230KG 260KG 470KG 550KGS

Sample show

1610 130W CO2 Laser Cutting Machine Energy Saving For Glass Plexiglass Plastic


Packaging & Delivery

1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder

Competitive Advantages
​
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
