Servo Motor Drive Micro Laser Welding Machine Ultrasonic Welding Machine For Sink
Servo Motor Drive Micro Laser Welding Machine Ultrasonic Welding Machine For Sink
Specifications
Brand Name :
LinxuanLaser
Model Number :
LX-D3
Certification :
CE FDA
Place of Origin :
Hubei, China (Mainland)
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200units per month
Packaging Details :
Standard exporting wooden package box
Laser Type :
YAG or fiber
Welding Area :
900*600*700mm
Warranty :
12 month for the full machine
Power supply :
380V/50HZ/12KW
Cooling System :
Water Chiller
After-sales Service Provided :
Engineers available to service machinery overseas
Dimensions :
990X640X1000mm
Description

Servo Motor Drive Ultrasonic Micro Laser Welding Machine For Sink 0.5 - 4μm

Introduction:

The optical fiber transmission laser welder is a kind of laser welding equipment that couples the high energy laser beam into the optical fiber, collimates to parallel light by collimating lens after long distance transmission, and then focuses on the work piece to weld. For the positions hard to reach, implement flexible noncontact welding to have more flexibility. The laser beam can realize spectroscopy in time and energy and process multiple light beams simultaneously, making more precise welding possible.

Industry application:

Applied in the precision welding of optical communication device, IT, medical, electronics, battery, optical fiber coupling device kinescope electron gun, metal parts, mobile phone vibrator, precision clock and watch components, automobiles steel sheet, etc.

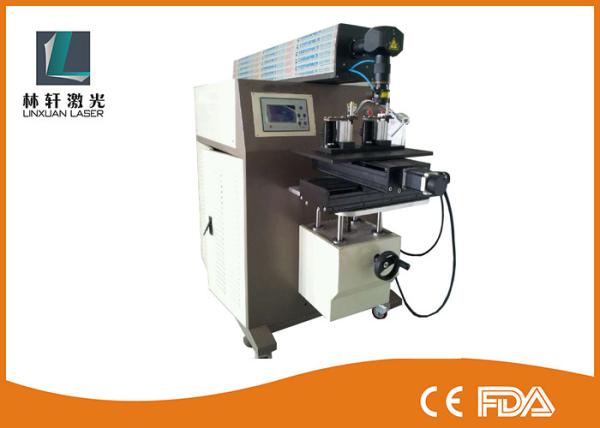

Servo Motor Drive Micro Laser Welding Machine Ultrasonic Welding Machine For Sink

Main features:

1. CCD monitor system is equipped for observing and precision positioning.
2. The welding spot energy distributes evenly and has the perfect light spots required by welding characteristics.
3. Suitable for complex welds, spot welding of different devices and sea welding of thin plates within 1mm;
4. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life.The life of xenon lamp is more than 8 million times.
5. Automatic tooling fixtures can be customized to realize mas production.


Technical parameters

Model
LX-D3
Laser Source
ND3+: YAG
Wave Length
1064nm
Laser Power
300W(Max: 400W)
Single Pulse max laser power
≤80J
Single pulse Width
0.1~0.25ms (Continuously adjustable)
Pulse Frequency
0~100Hz (Continuously adjustable)
Power Instability
<±2%
Focal Spot Diameter
0.2~0.6mm
Fiber Length
3m5m
The min diameter of focused spot
0.2mm
Welding Depth
0.1~3mm (low carbon steel or stainless steel)
Environmental Requirements
10~35℃
Insulation Resistance
Grounding Resistance 100Ω or less
Voltage Range
3 phase AC380V±10%
Max input Current
40A
Total Power
12KVA
Cooling power Input
3HP water chiller
Machine Size
990X640X1000mm
