High Frequency Desktop Laser Welding Machine 220V 50HZ For Jewelry / Gold
High Frequency Desktop Laser Welding Machine 220V 50HZ For Jewelry / Gold
Specifications
Brand Name :
Linxuanlaser
Model Number :
LX-D4
Certification :
CE FDA ISO
Place of Origin :
Wuhan,China (Mainland)
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200units per month
Packaging Details :
Standard exporting wooden package box
Laser Type :
YAG Laser Welding Machine
Use for :
Weld Jewelry Gold Sliver Platinum
Focal Spot Diameter :
0.1-2.0mm
Laser power :
200w
Laser wavelength :
1064nm Laser Welding Wire
Power supply :
220V 10% /50Hz
Dimensions :
1850mmx700mmx1750mm
Description

High Frequency Desktop Led Electrode Plasma Laser Welder Machine

Introduction

This laser welder uses galvanometer scanning method, features high welding speed, high precision and good light beam mode, and is suitable for precision laser spot welding of various parts. During single spot welding, the working efficiency is 4-10 times higher than common laser spot welding because the idle stroke positioning time is significantly reduced. The scanning laser welder consists of YAG solid laser, laser power supply, optical scanning system, 3D adjustable work bench, industrial PC system, cooling system, laser indication system and operating cabinet.This welder provides dedicated laser welding software based on Windows platform. The welding spots or graphs can be imported and edited in the dedicated software, or edited in other software such as AutoCAD and CorelDraw and then processed in the dedicated software. This welder features stable quality, convenient operation and easy maintenance.

Application

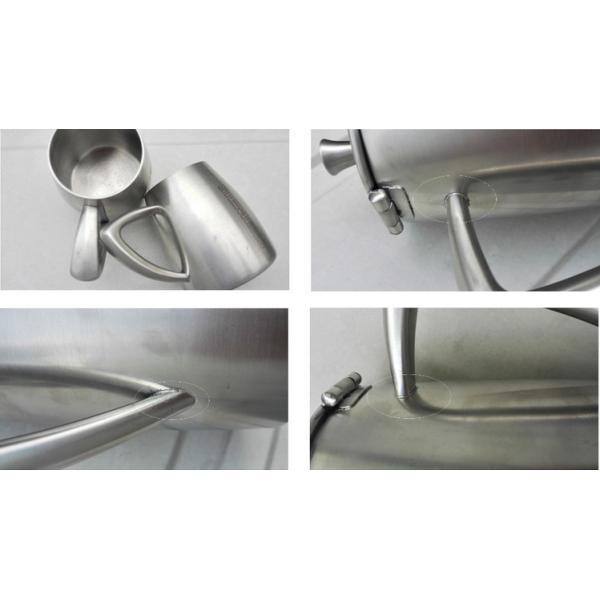

This welder is mainly used in highly efficient laser spot welding or seal welding of mobile phone shielding case, mobile phone metal shell, capacitor metal shell, metal shielding grid in computer, shaver blade, electronic connector and other electronic products.


Techinical Parameters

Model LX-D4
Laser type Nd:YAG
Laser wavelength 1064nm
Maximum laser power 100W/200W
Pulse width ≤20ms
Pulse frequency ≤50Hz
Spot welding speed ≤15 spots/s
Size of light spot 0.2-3.0mm
Adjusting range of light spot 0.1-0.3mm
Maximum positioning speed ≤7000mm/s
Resolution 0.001mm
Repeating precision 0.002mm
Cooling Water cooling
Master unit dimensions

1600*800*1500mm

High Frequency Desktop Laser Welding Machine 220V 50HZ For Jewelry / Gold
