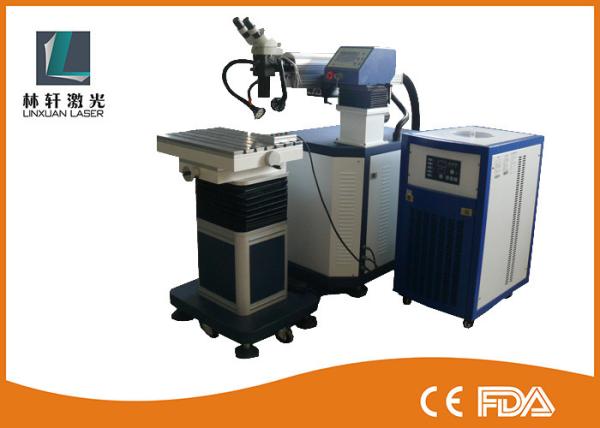

Automatic Channel Letter Laser Welding System , Laser Soldering Machine For Jewellery
Automatic Channel Letter Laser Welding System , Laser Soldering Machine For Jewellery
Specifications
Brand Name :
LinxuanLaser
Model Number :
LX-D19
Certification :
CE FDA ISO
Place of Origin :
Wuhan,China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Packaging Details :
Standard exporting wooden package box
Laser Type :
Nd:YAG
Use for :
welding metal words, AD words
Warranty :
12 month years for the full machine
Laser power :
200W
Pulse Width :
0.3-20ms
Power supply :
220V /50HZ
Dimensions :
1000*700*300mm
Description

Automatic Channel Letter Signage Laser Letter Welding Machine With CE FDA Certificate

Advantages


1. Energy, pulse width, frequency and facula can be adjusted within a wide range to achieve different welding effects. Parameters are adjusted by the control rod in the sealed cavity, simple and efficient.
2. Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in electrical / optical conversion.

3.The focusing cavity's service life is 8 to 10 years, and the service life of the xenon lamp is over 8 million times.
4. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
5. 24-hour continuous operation, with stable operating performance, and free from maintenance within 10000 hours.
6. Personalized design in compliance with ergonomics principles.

Applicable to material and fields


Perforation and spot welding of sand hole for Specialized for Spectacle frames welding

And also stainless steel materials.


Technical specifications

Model LX-D19
Average laser power 200w
Max laser power 200w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 2mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 220VAC / 380VAC ± 10% / 50-60HZ
Power Consumption ≤4KW
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1300mm x 600mm x 1600mm
Weight ≤200kg
Cooling Way Water cooling
Laser Type Pulse


Delivery and Shipment

  1. Ship in 7 days after 100% payment;
  2. Plywood box packaging.

Payment Terms

  1. Prepay 30% when we receive the Purchase Order;
  2. Complete the rest 70% payment 3 days before the cargo shipped.

After-sales service terms

  1. One year guarantee and life time maintenance;
  2. Free training in Herolaser's factory;
  3. In One year of purchase, such as machine failure is a quality problem ,free maintenance. The service does not include human or environmental factors, customers fault and supplies section.

Automatic Channel Letter Laser Welding System , Laser Soldering Machine For Jewellery
