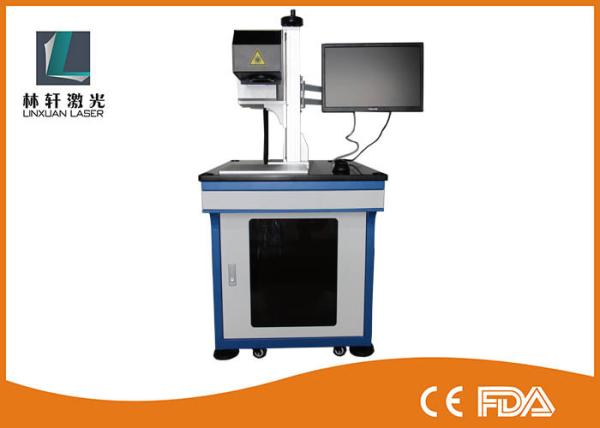

Our CO2 flying laser marking machine adopts import CO2 R&F laser and high speed scanning system, combine with high quality optic parts, high stability laser power, full-automatic controlling system. This machine has high marking speed and accuracy, Stable performance, ensure constant marking on feeding working table with coder and sensor, it has more advantages compared with traditional laser marking machine and jet print machine, such as much higher speed and precision, Environment-friendly, low consumption, permanent marking, etc. The software control system of this machine is easy, convenient and stable, it is very popular in the market all over the world.
1. Craftwork gifts, furniture, leather clothes, advertisement tablets, model preparation;
2. foodstuff packaging, electronic components, medicines packaging, printing plate making etc.
3. Non-metallic materials for engraving such as wooden and bamboo products, papers;
4. leathers, cloth, organic glass, epoxy resin, acrylic, polyester resin, etc.
This machine has high speed, stable for constant working, big function software, high position accuracy and repeated precision, etc, widely used in graphics and character marking inhandcraft , souvenir, cloth, leather, packaging of drink, medicine, cosmetic, IC products, auto parts, tobacco, electric wire and cable, nameplate, etc.
Machine Type | co2 laser marking machine | ||
---|---|---|---|
Laser Type | American SYNRAD or RF laser source | ||
Laser output power | 10W | 30W | 60W |
Laser tube life time | 30000-40000 hours | ||
Applicable materials | Non-Metallic Materials | ||
Standard Working area | 110mm*110mm | ||
Optional Working area | 70mm*70mm, 140mm*140mm, 175mm*175mm | ||
Marking depth | 0.01mm-0.3mm | ||
Maximum marking speed | 7000mm/s | ||
Laser wavelength | 10.64um | ||
Minimum Line Width | 0.015mm | ||
Repetition Accuracy | ±0.01mm | ||
Power Supply | 220/110V(50HZ/60HZ) | ||
Machine power consumption | 300W/1.2KW/2KW |
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-14 days after received your payment
