Metal Tube CO2 Laser Marking Machine 110mm * 110mm Engraving Area For PET Bottle
Metal Tube CO2 Laser Marking Machine 110mm * 110mm Engraving Area For PET Bottle
Specifications
Brand Name :
LINXUAN
Model Number :
LX-B3
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Application :
Laser Engraving
Cooling Mode :
Air cooling
Laser Power :
30W
Laser source :
SYNRAD
Engraving area :
110mm*110mm
Description

Metal Tube Co2 Laser Marking Machine For PET Bottle

Description

CO2 laser marking machine is suitable for marking logo, character, serial number, bar code, data matrix, production date, expiry date, batch number, etc. on nonmetal (plastic, rubber, paper, PMMA) materials in cloth, outer package of food and pharmaceutical, ceramic, beverage bottle, pet bottle, rubber products, IC, leather, etc.

Product Features

1. Certification: CE,FDA,ISO,SGS

2. Laser Power:Optional

3. Working area can be customized as your requests

4. Air cooling

5. Support Plain and Cylinder marking type

Application

This machine is suitable to Leather,Food,Craft gifts,Cloth,Electronic,Meter and Medicine,Communication instruments and package,etc

Leather,Cloth,acrylic,Crystal,Plastic,Rubber,Fabric,Epoxy,Plexiglass,Nameplates,Organicglass,Package and Printingwood and other non-metal materials.

Specifications

Machine Type co2 laser marking machine
Laser Type American SYNRAD or RF laser source
Laser output power 10W 30W 60W
Laser tube life time 30000-40000 hours
Applicable materials Non-Metallic Materials
Standard Working area 110mm*110mm
Optional Working area 70mm*70mm, 140mm*140mm, 175mm*175mm
Marking depth 0.01mm-0.3mm
Maximum marking speed 7000mm/s
Laser wavelength 10.64um
Minimum Line Width 0.015mm
Repetition Accuracy ±0.01mm
Power Supply 220/110V(50HZ/60HZ)
Machine power consumption 300W/1.2KW/2KW

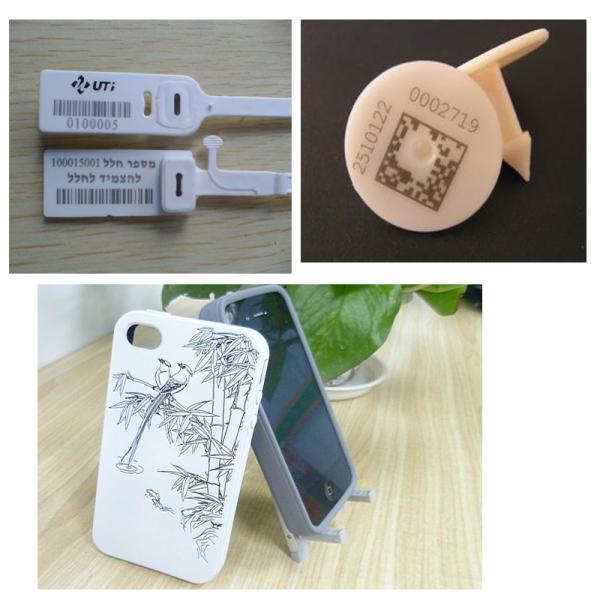

Marking Samples

Metal Tube CO2 Laser Marking Machine 110mm * 110mm Engraving Area For PET Bottle

Packaging and delivery

1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-14 days after received your payment.
