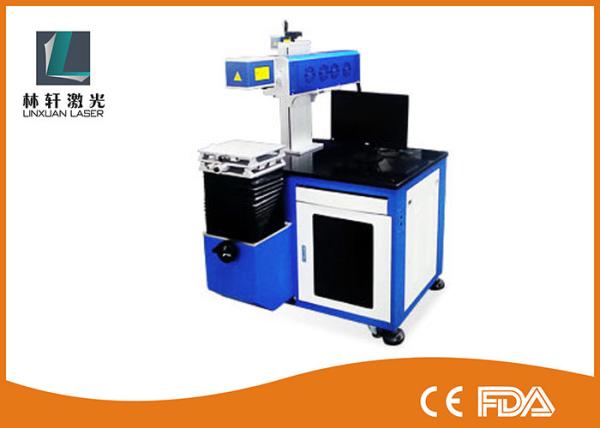

60W RF Laser Tube CO2 Laser Marking Machine for Paper Wood Plastic

Description

The core optic components of the CO2 series laser marker are imported from America. The CO2 radio frequency laser and high speed scanning galvanometer imported from America provide reliable guarantee for the long time, continuous, high speed and stable work of the machine. The CO2 radio frequency laser is a kind of gas laser and the laser wavelength is 10.64μm, which is in medium infrared frequency. The CO2 laser has big power and high electro optic conversion efficiency. It uses CO2 as the working substance, and fills the CO2 and other gases into the discharge tube. When high voltage is added to the electrode, glow discharge generates in the discharge tube and makes the gas molecules release laser. After expanding and focusing the released laser energy, the laser process is realized through deflection with scanning galvanometer.
The marking software runs in WINDOWS platform and Chinese interface. It is compatible with the file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, PCW, DIF, BMP, etc. It also can use SHK and TTF character libraries. Design graphs through computer. The operation is simple. The power is controlled by the software and adjustable.

Product Features

1. High marking precision, high speed, controllable carving depth.
2. Big laser power, suitable carving and cutting nonmetal products.
3. No consumables, low cost, as long as 20,000 to 30,000 hours service life.
4. Clear mark, high carving and cutting efficiency, environmental friendly, and energy saving.

Application

Arts and crafts, furniture, leather and costume, advertising label, model making, food packaging, electronic components, medicine packaging, printing plate making, shell label, etc.
Suitable materials:
Bamboo and wood products, papers, fabric, leather, organic glass, epoxy resin, acrylic, polyester resin.

Specifications

Marking Samples

Packaging and delivery

1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 5-7 days after received your payment.
