Specifications
Brand Name :
Linxuan Laser
Model Number :
LX-A1
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
3000 Unit per Month
Packaging Details :
Packed by wooden case
Control sofware :
EzCad
Support file :
AI, DXF, PLT
Technology :
Fiber laser
Cooling way :
Air cooling
CNC or not :
Yes
Wavelength :
1064nm
Working accuracy :
0.01mm
Marking speed :
7000mm/s
Description


MOPA 20w Fiber Laser Marking Machine For Metal / Plastic / Rubber / ABS / PVC / PES

Fiber laser marking machine adopts top technology class IV laser. It is good at marking on all metals, such as stainless steel, copper, aluminum, brass, iron etc. And some plast, ceramic. Hot using in every industry in life.

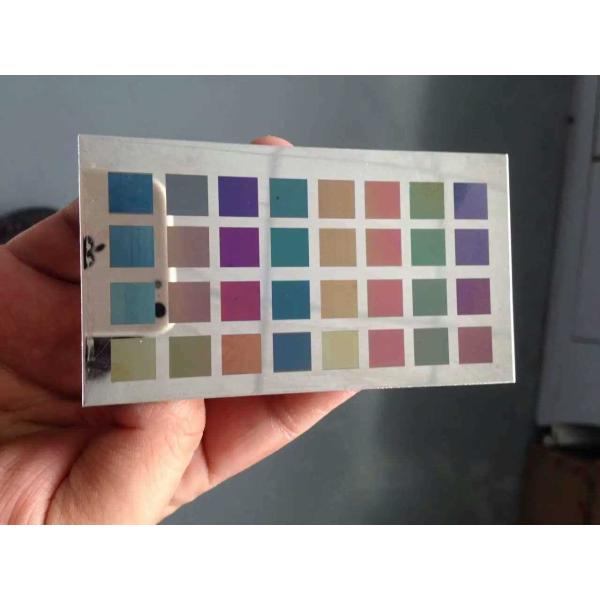

Mopa series machine has small pulse width which can mark on stainless steel with some colors. And it can mark special black on anodized aluminum.

With beautiful and permanent engraving logo, products will have more discrimination and additional value.

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.


There are many different machine model for optional. Such as desktop , mini , enclosed , online flying etc.

Products description

1. Fine effect: Printing permanent

2. Fast marking speed

3.Marking is permanent will not disappear

4.Consumable-free

5. High working efficiency

Parameters

Model No. LX-A
The average output power >20W
Laser wavelength 1064nm
Beam Quality(M2) 1.3
average power output 20W
Output armored cable length 2M
Frequency adjustable range 1-1000 kHz
Pulse width range 2-250ns
Maximum pulse energy 0.5mJ
Full power frequency range 40-1000kHz
Pulse width range 6-250n
Max Speed 7000mm/s
Standard marking 110*110mm (175*175mm,200*200mm for optional)
Consumed power <500W
Cooling system Air cooling
Power Supply 220V/50Hz/15A
Operating software EzCad (JCZ control card )
Supporting vectorgraph file AI,PLT,DXF,DST etc
Supporting picture file bmp,jpg,gif,tga,png,tif etc
Supporting computer system Win7 32bit /Win7 64bit

Marking picture


MOPA 20w Fiber Laser Marking Machine Air Cooling For Plastic / Rubber / ABS


Our Service

We provide two-years machine warranty. In case it exists machine problem. Engineer can go to customers' place for solving problems.

Quality is our culture. Our team will make strict quality checking for every part of the machine before entering into warehouse. Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.


Delivery Time

5-7 working days after receive the payment.

Package

plywood case.

Transportation Mode

Fiber laser marking machine would be shipped by ocean transportation, air transportation or by express.
