Industrial Digital Dot Peen Marking Machine Vin Code Machine For Stainless Steel
Industrial Digital Dot Peen Marking Machine Vin Code Machine For Stainless Steel
Specifications
Brand Name :
LinxuanLaser
Model Number :
LX-E1
Certification :
CE FDA approve
Place of Origin :
Wuhan,China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
120units per month
Packaging Details :
Standard exporting wooden package box
Application: :
Hard Plastic,metal parts steel
Warranty :
12 month for the full machine
Product name :
dot pin marking machines
Application :
nameplate ,metal steel
Transport Package :
Wooden Case
Power supply :
220V±10% 50Hz
Any character size :
0.5 mm to 100 mm
Description

Industrial Digital Hot Sale Dot Peen Marking Machine Vin Code Machine

Features

1. Core Parts: Imported from Taiwan, Japan, USA...etc.

2. 3 Years Warranty: Main parts, not including consumable part like pin head.

3. 10 Years Durable: Cast Iron Base.

4. Best Air Valve In The World: USA MAC.

5. Imported Luxembourg Pin Header: high tensile and durable for one whole year.

6.Imported Taiwan Air Pressure Regulator(controller)

7. High Precision Linear Slider HIWIN or SBC.

8. Millitary Aviation Cable.

9. Industrial Load Bearing Pole.

10. Industrial Screw Rod.

11. Convenient Control Buttons: Lamp, Air control, Print.

12. Flat Angular and Circular Marking.

Product Description

Item number LX-E1
Product Name CNC Dot peen Portable Marking Machine
Usage Metal Embossing, Printing Machine – Stylus Printer, Dot Pin Header,Steel Marking
Marking surface 350WFlat Angular and Circular Marking
Additional parts need PC & Air Pressure (Optional: 7.5 inch monitor don’t need PC)
Controller Interface PC USB, VGA, 19 Pins Aviation Transmission Line
Electricity AC220V±10%~50Hz AC110V±10%~50Hz
Energy consumption 350W
Precision 0.02mm Adjustable
Marking type Full Automatic
Marking machine type
 Desktop, Benchtop
Marking contents Characters, Numbers, Date, Symbols, Graphs, Logo, QR code, 2D Data Matrix
Size of characters Adjustable On Marking Software
Marking depth 0.02-2 mm (Adjustable, Depending On Materials)
Marking speed 3-8 Letters/s According to Letter Size (height 2mm)
Marking materials Metal or Nonmetals with Hardness under HRC65
Pneumatic pressure 0.3-0.6 Mpa
Dot peen header Harden HRC92 (Hardness)
Software English Version for Windows Fully Compatible
Operation Marking History and Auto Diagnostic Functions

Applicable Material

Metal: Stainless steel, high-grade steel, steel, Carbon steel, Copper, Iron, ferrous metals, Aluminum, Brass

Plastics: Hard plastic materials.

Metal Machine for Printing, Marking and Engraving Content

No. Item No. Marking Content
1 LX-E1 Logo
2 Numbers
3 Symbols
4 Graphs
5 Characters
6 QR code
7 Metal nameplate
8 Metal plate
9 Stainless steel
10 Pipes, tubes and cylinder

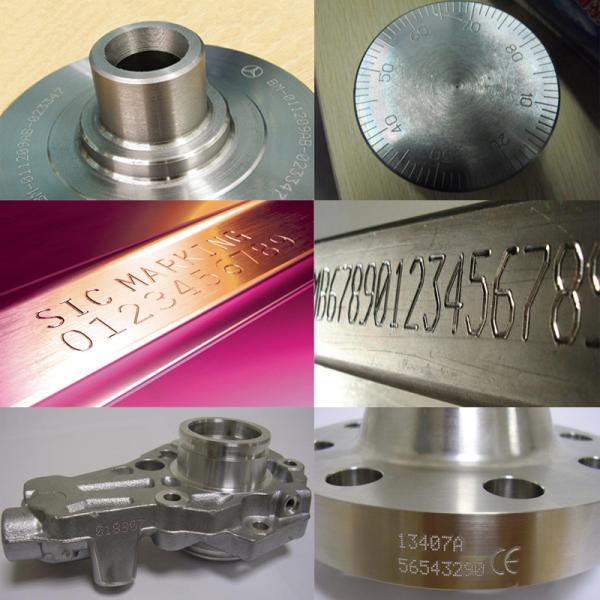

Marking Samples

Industrial Digital Dot Peen Marking Machine Vin Code Machine For Stainless Steel

Dot peen marking machine is good for Cast and Forge Marking, Logo marking ,2D Matrix code marking, Direct Part Marking (DPM) ,Component Traceability and Identification ,Time & Date Marking ,ID and Serial Numbers Marking ,Compliance Marking,,Metal Plate Marking, Part numbering and etc.
