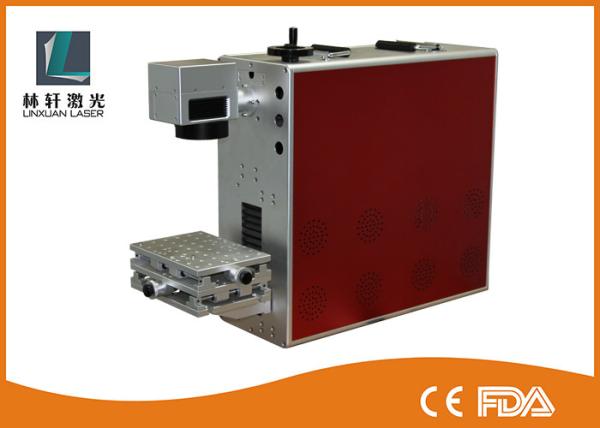

Air Cooling Fiber Metal Laser Engraving Machine For Gold / Stainless Steel / Silver
Air Cooling Fiber Metal Laser Engraving Machine For Gold / Stainless Steel / Silver
Specifications
Brand Name :
Linxuan Laser
Model Number :
LX-A1
Certification :
CE,FDA
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Supply Ability :
500/Month
Delivery Time :
5-7 working days
Packaging Details :
Wooden case. Durable package to protect machine from damage
Engraving Material :
Gold,silver,stainless steel,brass,steel,copper,aluminum
Engraving Power :
20W,30W,50W,100W
Laser wavelength :
1064
Repeating frequency :
0-100KHz
Light beam quality :
≤2
Engraving depth :
0.1-1mm
Minimum character :
0.01mm
Repeating precision :
±0.002
Power supply :
220V/50Hz
Power consumption :
500W
Operating system :
XP, WIN7, WIN 8, WIN10
Description

High Quality Hot Sale Air Cooling Fiber Metal Laser Engraving Machine For Gold / Stainless Steel / Silver

Product Application

The filed with the higher requirement for depth and smoothness such as clock industry,mould industry,bitmap making and so on.The other field such other electronic componet,electrical products,IT industry,auto-parts,metal tools,accurate instruments,present and adornment,medical instrument,high or low voltage electric equipment etc.

Features:

1. Fiber laser(German IPG brand or China fiber laser optional)

2. High speed galvo scanner(import or china brand optional)

3. No maintenance laser source: servicetime 100,000 hours.

4. Higher precision,faster speed

5. Small size,low power consumption

6. Red light preview:show the marking position before lasering

7. Notebook with Powerful software

8. User friendly interface, easy operation

Specification:

Laser power 10W 20W 30W 50W
Supports graphical format PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality m2 <2
Power stability (8h) <± 1% rms
Pulse repetition frequency 20KHZ ---- 100KHZ
Power consumed <800W
Minimum line width 50μm
Minimum character 0.3mm
Laser Wavelength 1064nm
Galvanometer Size 110 * 110mm (optional)
Whole machine power 500w
Cooling way Air cooling
Operating voltage 110/220V ± 10% /,50/60HZ
Ambient operating temperature 15 ° C - 35 ° C

Sample pictures

Air Cooling Fiber Metal Laser Engraving Machine For Gold / Stainless Steel / Silver

Our service

24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
One-year warranty is provided. (The detailed reference will be written into the final contract.)
Professional staff for installation and training if needed.
Spare parts are supplying on time or doing some inventory if promising certain sales volume.
Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.

Packing pictures

Air Cooling Fiber Metal Laser Engraving Machine For Gold / Stainless Steel / Silver
