Economic Portable Dot Peen Pneumatic Marking Machine Power Consumption 100W

What is dot peen needle?

a. It's the consumable parts of pneumatic marking machine

b. It's the high frequency model

c. Be widely used for aluminum, brass, stainless steel marking

d. Also be used for high speed marking.

What field could this model be used for?

Automobile, bodywork of motorcycle, car frame ,automotive chassis, engine, mechanical part,

machine tool, metal pipe, gear, pump body, valve, various hardness plastic products, hardware part,

Aeronautics, Electronics, war and light industry for marking steel, iron, copper, aluminum and plastic parts and various nameplate marking

Parameters

Pin cover Material: Aluminum (optional color), copper, cost iron

Thread type: M24/ M26

Stylus material: supper hard alloy

Stylus hardness: 93HRA (68HRC)

Marking material hardness: ≤ 60HRA (HRC30)

Marking Objects : plastic, iron, copper, aluminum and other metals

Marking depth: 0.1mm-5mm

Stylus diameter: Φ2, Φ2.5, Φ3, Φ4, Φ5, Φ6, Φ8 ( customized supported)

Thread size: M18, M24, M26, M27, M32 (customized supported), thread pitch 1mm

Stylus length: 30mm, 42mm, 45mm, 53mm, 56mm, 60mm, 75mm, 76mm, 110mm

(customized supported)

Stylus head diameter: 10.7mm, 12.8mm, 16mm, 17.2mm (customized supported)

Air Pressure :0.3-0 .6 pa

How to choose suitable dot peen marking needle for dot peen marking machine?

For the stylus length:

1. 30mm, 42mm, 45mm: suitable for portable marking machine

2. 56mm, 60mm: suitable for normal marking and bench top marking machine

3. 75mm, 76mm, 110mm: lengthened marking pin are mainly used for narrow parts marking that normal marking pin hard to reach, such as modified motorcycle engine number etc.

For the stylus size:

• Φ2, Φ2.5: suitable for aluminum etc. Low hardness products
• Φ3, Φ4: suitable for normal marking requirements
• Φ5, Φ6, Φ8: a certain depth requirements.

Electrical marking stylus:

Φ2.5, Φ3.5 for choose both model suits for aluminum and SS metal marking.

Comment:

1. To marking on high hardness (HRA60 and above metals products , needed to use the diamond pneumatic marking pin.
2. The life of the marking pin is depending on the frequency of usage, marking depth and the material of working piece.

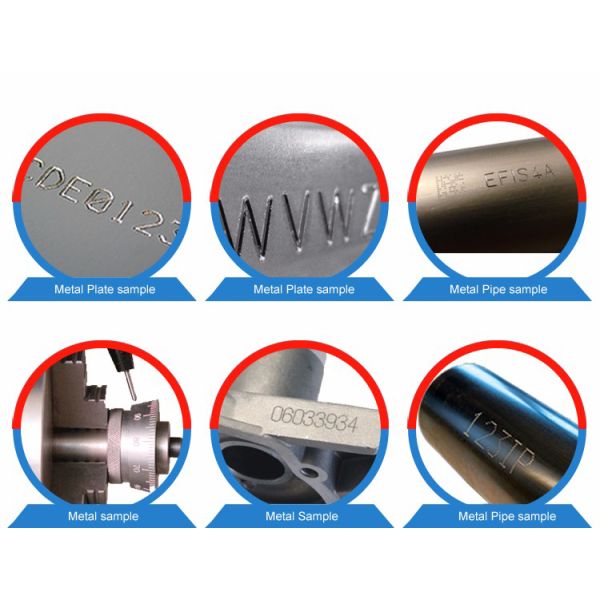

Marking Samples

After sales service

1. One year for free warranty (include whole machine and parts, the material except)
2. We can supply the new machine parts or fix the old one.
3. Free design and guide for customer
4. Free software update
5. Professional technical support
