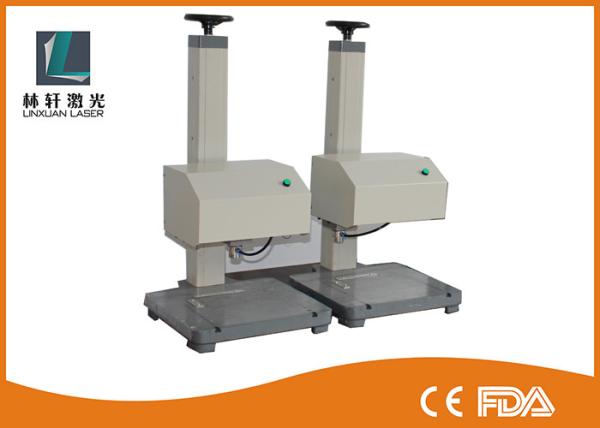

Deep / Clear Dot Peen Marking Machine 120mm X 80mm Marking Area For Plate Marking
Deep / Clear Dot Peen Marking Machine 120mm X 80mm Marking Area For Plate Marking
Specifications
Brand Name :
LinxuanLaser
Model Number :
LX-E1
Certification :
CE FDA
Place of Origin :
Wuhan,China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
120units per month
Packaging Details :
Standard exporting wooden package box
Application: :
Hard Plastic,metal parts steel
Warranty :
1 years for the full machine
Product name :
dot peen marking machines
Application :
nameplate ,metel steel
Transport Package :
Wooden Case
Power supply :
220V±10% 50Hz
Rated Power :
300W
Description

Deep And Clear Dot Pin Marking For Security Marking / Standard Marking Area 120MMX80MM

Basic principles

Computer controls marking-needle to move on traces of pre-edited characters and graphs, meanwhile, to strike materials at a high frequency under the application of compressed air, thereby, to form needed characters and graphs.

Major functions

The marking machine can print any graphics and English characters in a variety of materials, parts, also can adjust the character size, auto-marking date and the water code, VIN code. The machine can be internet communication;

Application

Suitable for all kinds of metal or non-metal sign plane orientation automatically marking, plane marking of parts, as well as radial cylindrical workpiece marker.

Particularly applicable to various nameplates, plate marking, using a simple convenient and economical

Machine characteristics

l Working table is precision die casting,

l 128 sub-drive

l Imported straight line guide rail,

l High-precision stepping motor,

l Adopt the imported tungsten alloy print pin, stable and long life.

l Advanced USB interface control technology

l High performance industrial motherboard, the needle work automatically.

Technical Specification

Marking speed 30~40mm/s
Marking depth 0.01~2mm (depends on the different materials)
Marking contents characters, alphanumeric, date, numbers, serial NO,VIN code etc.
Marking area (mm) 125mmx85mm/150mm x 130mm/200mm x150mm/300mm x 200mm(customized support )
Up and down lifting height 0—300mm
Materials request below HRC60 metallic and nonmetallic materials (above HRC60 need special stylus)
Whole machine power 500W
Work power AC220V±10%50Hz or 110V US standard
Inputting air pressure 0.3—0.6MPa

Marking Samples

Deep / Clear Dot Peen Marking Machine 120mm X 80mm Marking Area For Plate Marking

After sales service

1. One year for free warranty (include whole machine and parts, the material except)

2. We can supply the new machine parts or fix the old one.

3. Free design and guide for customer

4. Free software update

5. Professional technical support
