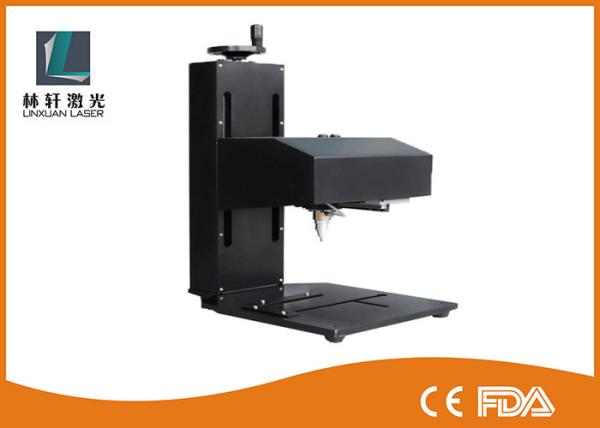

Chassis Vin Number Pneumatic Portable Marking Machine For Steel CE Certification
Chassis Vin Number Pneumatic Portable Marking Machine For Steel CE Certification
Specifications
Brand Name :
LinxuanLaser
Model Number :
LX-E1
Certification :
CE FDA
Place of Origin :
Wuhan,hubei,China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
120units per month
Packaging Details :
Standard exporting wooden package box
Application :
nameplate ,plastic,metal
Warranty :
1 years for the full machine
Product name :
dot peen marking machines
Transport Package :
Wooden Case
Power supply :
220V±10% 50Hz 110V US standard
Any character size :
0.5 mm to 100 mm
Description

Chassis Vin Number Pneumatic Portable Dot Peen Marking Machine Certification: CE FDA ISO

Function characteristics

A. Special tungsten alloy print needle,marked effect clear,consistent with the public security ministry announced vehicle marking requirements.

B. With the marking machine dedicated controller,light weight,small volume,convenient for carrying.

C. The electromagnet can absorb adsorption device,frame directly labeled.

D. Serial number automatic accumulation,VIN code automatic calculation.

E. Friendly interface,easy to learn,easy to operate.

Working humidity 0-90% Marking depth 0-1.2mm(according to the material)
Marked form Pneumatic printing Power <150W(excluding magnet)
Working temperature -10°C-400°C Air pressure 0.2-0.7MPa
Marking speed 5-120characters/minute Marking area

30x110/130/150mm
Outline dimensions 380X195X245mm Impact frequency 130~300hz
Marking content All kinds of digital, Chinese English character, common characters, serial number, VIN code ISOand graphics anti-fake mark

Main function

1. Automatic memory: The system can remember the identified data like the height,width.

2. Working document reserve: The systems can reserve the working document with different names,it is easy for identifying the different working document with different form.

3. SD Serial Data can be accumulated by the themselves :The SD Serial Data will be accumulated automatically after finished one task.

4. Varieties alternations for marking : There are different speeds of marking to choose and adjust printing result,is applicable for different production demands.

5. Memory content for different lines :The system can finish the making content ,even for 40 lines.

6. Character alternations :The system offers 4 data libraries ,the customers also can add the data libraries which is not less than 10 pieces .Including the numbers ,letters and special characters etc.

Marking Samples

Chassis Vin Number Pneumatic Portable Marking Machine For Steel CE Certification


After sales service


1. One year for free warranty (include whole machine and parts, the material except)
2. We can supply the new machine parts or fix the old one.
3. Free design and guide for customer
4. Free software update
5. Professional technical support
