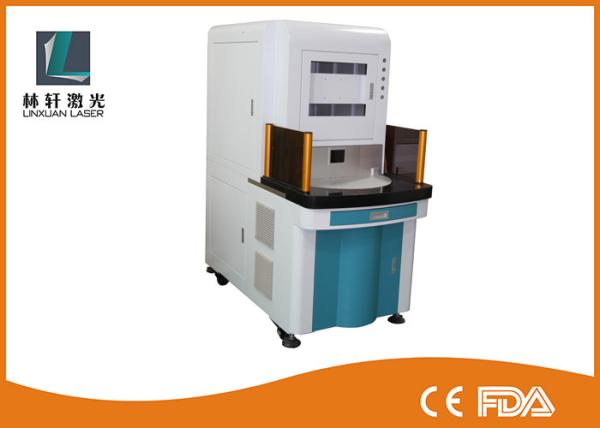

Durable UV Laser Marking Machine with Proteting Cover , 2 Year Warranty
Application
1. Electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories
2. Pharmaceutical, food, beverage and cosmetics industry.
3. Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
4. It can be marked on polymer material, majority of the metal and non-metallic
Product Advantage
1. Powerful function, friendly interface, to meet the various technical personnel operating habits
2. Many kinds of drawing processing methods are optional, with high-speed marking, high efficiency, and good effect.
3. Many kinds of drawing processing methods are optional, with high-speed marking, high efficiency, and good effect.
Specifications
Model | LX-C1-1W/3W/5W | LX-C1-7W/10W |
Laser type/wave length | 355nm | |
Laser output power | 1W/3W/5W | 7W/10W |
Beam quality㎡ | <1.1 | <1.3 |
Marking speed | 70000mm/S | 70000mm/S |
Repeated accuracy | ±0.001mm | |
Working area | 110×110mm or 175×175mm ( adjustable ) | |
Machine power | 800W | 1200W |
Power supply | 220V/50-60Hz | |
Minimum character | 0.1mm | |
Minimum line width | 0.015mm | |
Life of the laser machine | ﹥100,000 hours | |
Cooling system | Diode Cooling / Air Cooling | |
Control interface | Standard USB | |
Overall dimensions | 900mm×680mm×1200mm |
Description
This machine compared with infrared and green laser machine also has the advantage. This machine is more suitable for marking on metal, glass, silica gel, PBS and ABS materials, the reason is that the metal absorb purple light higher than infrared and green laser narrower pulse width of laser marks a shorter time of processing on materials, thus the material avoid being deformed or burnt due to thermal.
Product Features
1. This machine compared with infrared and green laser machine also has the advantage.
2. This machine is more suitable for marking on metal, glass, silica gel, PBS and ABS materials, the reason is that the metal absorb purple light higher than infrared and green laser narrower pulse width of laser marks a shorter time of processing on materials, thus the material avoid being deformed or burnt due to thermal.
3. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements. So the higher marking requirements, this machine meet most customer’s demand.
Sample show
Packaging & Delivery
1. Prompt delivery at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:permanent technical support for machine lifetime
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
