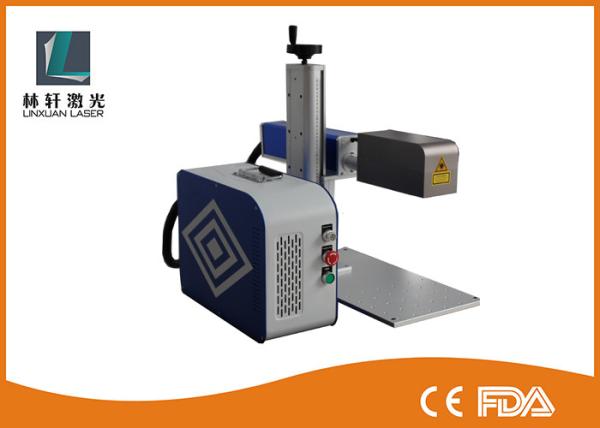

Table Type Metal Laser Marking Machine Reliable With Safe Fullcolsed Cabinet
Table Type Metal Laser Marking Machine Reliable With Safe Fullcolsed Cabinet
Specifications
Brand Name :
linxuanlaser
Model Number :
LX-A4
Certification :
FDA certification
Place of Origin :
Wuhan,China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
150 units one month
Delivery Time :
5 working days
Packaging Details :
exporting wooden package box
laser type :
Optical fiber laser
lens size :
200x200mm
Machine type :
mini,handheld,table
name :
Industrial Laser Engraving Machine
Galvo scanner head :
high speed galvo scanner
Power supply :
110V US standard
Laser source :
Raycus laser source
Marking depth :
0.3mm
Optional parts :
XY table,safety glasses,rotary,red light
Marking material :
metal,pvc,plastic
Description

3D Dynamic Metal Laser Marking Machine With Safe Fullcolsed Cabinet CE / FDA Approval

Product Description

1.Galvo scanner has compact size, high positioning accuracy, faster marking speed, and strong anti-interference ability.

2. In the process of dynamic marking, the marking line figures is high precision, distortion free, power uniform, pattern without distortion,

3. The overall performance has reached the international leading level in this field.

4.Fiber laser marking machine adopts the most advanced technology of the world, is called as The Third Generation Laser Marking Machine

by industry in the world. Because it has features like the best optical mode; excellent quality of laser beam; long operating life; the highest

electro-optical conversion efficiency; small size, reliable and without maintenance; suited for all metal and some kinds of non-metal marking.

It has been loved by customer in lots of fields, as soon as it has been introduced to the market.

This machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials

such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.

Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be

around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

Application Field and Material

It is mainly applied to the higher marking precision such as mobile phones buttons, plastic

translucent keys, electronic components, integrated circuits (IC), electrical appliances,

communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks,

jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products,iPhone case etc.

Table Type Metal Laser Marking Machine Reliable With Safe Fullcolsed Cabinet

Features of Laser Marking Solution LX-A4:

1. Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
2. Maintenance Free, save equipment and worker cost;
3. Imported Galvonometer, Higher precision,faster speed;
4. Higher photoelectric conversion efficiency, Low power consumption;
5. Red light preview, more accurate and reduce positioning time;
6. Laptop with Powerful marking software;
7. User friendly software interface, easy operation;
8. Set and deal different layers graphic separately;
9. Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10. Compatible AutoCAD,CorelDraw,Photoshop etc software Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment.

Technical Parameter for blue color table fiber laser marking machine

Parameters

Wave length of laser 1064nm
Laser repetition frequency 20kHz~100kHz
Laser power 10W 20W 30W 50W
Marking scope 50*50 /100*100 /200*200/300*300mm
Laser sources Fiber module
Laser Head Scanning head
The minimum focus facula diameter 20μm
Minimal character 0.01mm
Marking speed ≤7000mm/s
Repeated accuracy 0.0025mm
Cooling ways Force-air Cooling
Power supply 220V/ 50Hz/2kVA
Process Material All kinds of metal and part of Non-metal Materials
Support format PLT, BMP, DXF, JPG, TIF, AI etc
Package Standard Crate for export

Optional accessory

1 semiconductor module
1 set of high-speed vibrating mirrors
1 set of marking control system
1 industrial computer
1 marking work table
1 red laser pointer
1 pedal switch
1 set of marking software
1 user manual

After sales service

Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We arrange final test before shipment. We run the machine without material for a few days,

and then cut materials for test. After making sure machine is the best performance, then ship

out the machine.

Operating guide

Explain the use of machines and software. Guide the customer proper use, extend product life

and reduce energy consumption.
Machine maintenance&Warranty
Explain the maintenance of machine parts to extend product life and save the energy consumption,The whole set of machine warranty period is 2 year.

Packaging & Delivery

1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-14 days after received your payment
