Inverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for Sale
Inverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for Sale
Specifications
Brand Name :
LINCOLN
Model Number :
Optimarc CV500P
Certification :
CCC;CE;CSA;
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets a month
Delivery Time :
15 Working Days
Packaging Details :
Wooden Case/export packing
Process :
Pulse MIG/MAG MIG/MAG FCAW-GS/SS
Welding Amp :
5-500A
Input Voltaeg :
3Phase 380V
Dimentions :
500*350*850
Net Weight :
45Kg
Order Code :
K60102-2(CV500-P)
Wire Feeder :
LWF wire feeder
Description

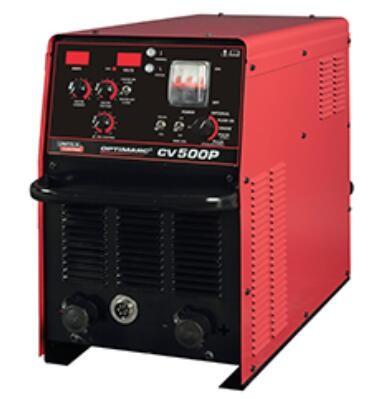

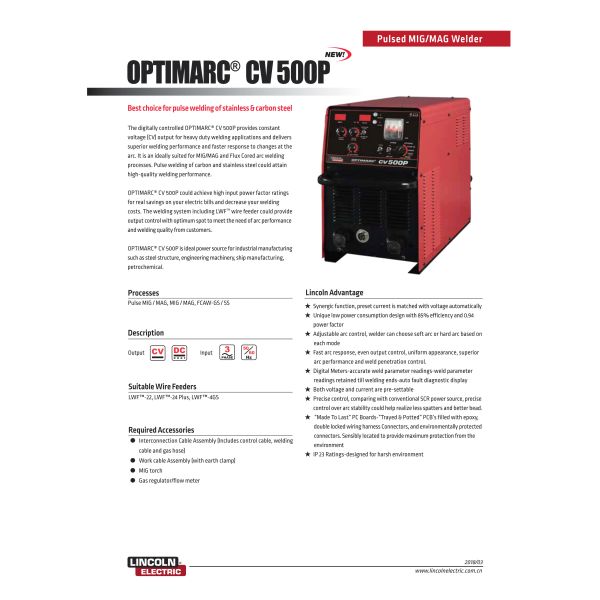

OPTIMARC® CV 500P

Key Features

  • Synergic function, preset current is matched with voltage automatically
  • Unique low power consumption design with 85% efficiency and 0.94 power factor
  • Adjustable arc control, welder can choose soft arc or hard arc based on each mode
  • Fast arc response, even output control, uniform appearance, superior arc performance and weld penetration control
  • Digital Meters-accurate weld parameter readings-weld parameter readings retained till welding ends-auto fault diagnostic display
  • Both voltage and current are pre-settable
  • Precise control, comparing with conventional SCR power source, precise control over arc stability could help realize less spatters and better bead
  • "Made To Last" PC Boards-"Trayed & Potted" PCBs filled with epoxy, double locked wiring harness Connectors, and environmentally protected connectors. Sensibly located to provide maximum protection from the environment
  • IP 23 Ratings-designed for harsh environment

Process

  • Pulse MIG/MAG
  • MIG/MAG
  • FCAW-GS/SSInverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for Sale

    Inverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for SaleInverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for SaleInverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for SaleInverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for Sale

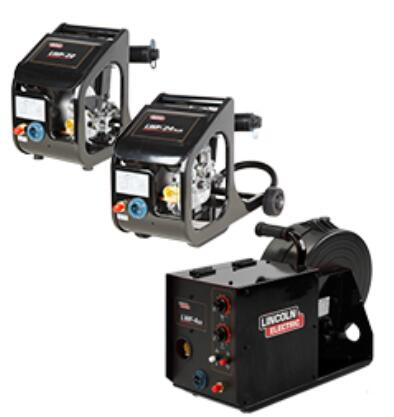

    LWF™-22/24 PLUS /4GS

    Key Features

    • Solid and flux-cored wire up to 2.0mm
    • Welding voltage, Current/Wire Feed Speed can be adjusted easily on control panel
    • The wire feed speed range varies from 1.5-18m/minCold inch and gas purge functions are included in control panel.
    • The drive roll design provides reliable feeding and is able to be changed easily
    • Protection metal flap covers control panel
    • Slide and rear wheel assembly enable the LWFTM-22 and LWFTM-24 Plus to be easily moved
    • Rear socket ensures fast and easy connection of control cable and gas hose
    • Asia style gun connector is convenient for most Chinese customers.Euro adaptor can be fast connected to Euro style gun connector
    • Two-year warranty on motorInverter MIG/MAG welding Machine;Lincoln CV500-P MIG welding Machine; 50-500Amp MAG/MIG welding machine for Sale
