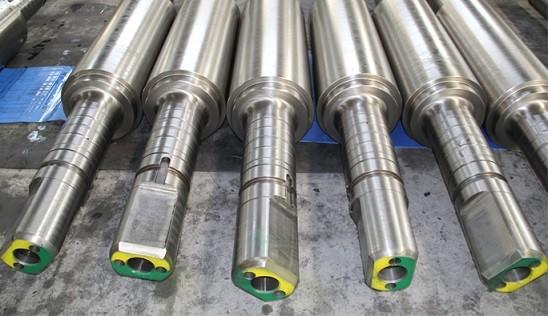

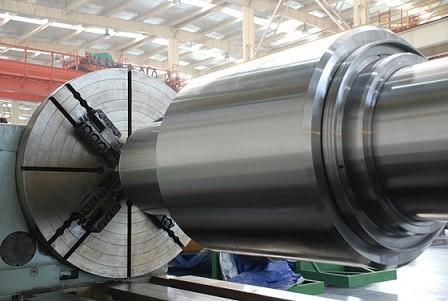

Deflector roll Forged Steel Pinch Rolls work roller backup roller
Deflector roll Forged Steel Pinch Rolls work roller backup roller
Deflector roll Forged Steel Pinch Rolls work roller backup roller
Deflector roll Forged Steel Pinch Rolls work roller backup roller
Deflector roll Forged Steel Pinch Rolls work roller backup roller
Deflector roll Forged Steel Pinch Rolls work roller backup roller
Specifications
Brand Name :
SEEC
Model Number :
Rolling mill
Certification :
ISO
Place of Origin :
China
MOQ :
10
Supply Ability :
As required
Delivery Time :
3-6months
Packaging Details :
Standard international package
type :
hot rolling mill and cold rolling mill
material :
forged steel
application 1 :
Work Rolls for Skin Pass Rolls
application 2 :
Deflector Pinch Roller
drawing :
as confirmed
standards :
ISO 9001
Description

Forged Steel Rolls Work Rolls for Skin Pass Rolls Deflector Pinch Rollr Pinch Roll

  • SEEC's roller products mainly includes Work Roll,Back Up Roll,Intermediate Roll,Straightening Roll,Pinch Roll,Driving Roll,Guide Roll,Leveling Roll,Table Roll,Cradle Roll,etc.
  • We are able to provide complete machining services such as boring,milling,turning,grinding,welding and fabrication.Usually we make it according to your drawing or requirements.

The details of Deflector Pinch Roll as follows:

1.Material: SUJ2, C35,34CrNiMo6,C45,EN19, SAE 52100,etc.

2.Dimension: Diameter: 60mm-1000mm; Length: ≤8000mm.

3.Surface Hardness: Max 100 HSD.

4.Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 - FBH max 4mm.

5.Quality Management Certification: ISO 9001:2008.

6.Manufacturing Process: Steel Ingot - Forging - UT - Rough Machining - UT - QT - Heat Treatment - Finishing Machining.

7.We are a factory and we have had ten years of experiences in manufactring.

Product Name Specification(mm) Main Materials Note
Deflector Pinch Roll Φ60-Φ1000 1035, 1045, C35E, C40E, C45E GB/T 13314-2008
GB/T 15547-1995

If you are concerned about Deflector Pinch Roll, maybe you will be interested in the following products:

Name Specification Material
Work Roll Dia. 60~ Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5,etc.
Back Up Roll Dia. 240~ Dia. 1000mm 9Cr2Mo, MC3,MC5,etc.
Intermediate Roll ≤Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3, etc.
Leveling Roll Dia. 60~ Dia.1000mm 60CrMoV, H13, 80CrMoV, etc
Table Roll Dia. 100~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Pinch Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Driving Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Cradle Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Guide Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
Piercing Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
Straightening Roll Dia. 80~Dia. 900mm H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc

1.0 Specifications

- Products with Customers' Designs
- Strong Machining & Heat Treatment Abilities
- Strict Quality Control
- Prompt Deliver

2.0 forged steel mill roll for cold rolled plate and sheet

Range: Forged rolls (weight≤50tons)

Name Specification Material
Forged Work Roll Dia. 60~ Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5,etc.
Forged Back Up Roll Dia. 240~ Dia. 1500mm 70Cr3Mo,9Cr2Mo,86CrMoV7, MC3,MC5,etc.
Forged Intermediate Roll ≤Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5 etc.

Forged Leveling Roll Dia. 30~ Dia.1000mm 60CrMoV, H13, 80CrMoV, etc
Forged Table Roll Dia. 100~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Pinch Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc

Forged Driving Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Cradle Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Guide Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
Forged Piercing Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
Forged Straightening Roll Dia. 80~Dia. 900mm

60CrMoV,801CrMoV,H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc
