Specifications
Brand Name :
SEEC
Model Number :
Rolling mill
Certification :
ISO
Place of Origin :
China
MOQ :
10
Supply Ability :
As required
Delivery Time :
3-6months
Packaging Details :
Standard international package
type :
hot rolling mill and cold rolling mill
material :
forged steel
Hardness :
max 100 HSD
Forging reduction ratio :
≥4
producetion :
as per drawing
standard :
ISO9001
Description

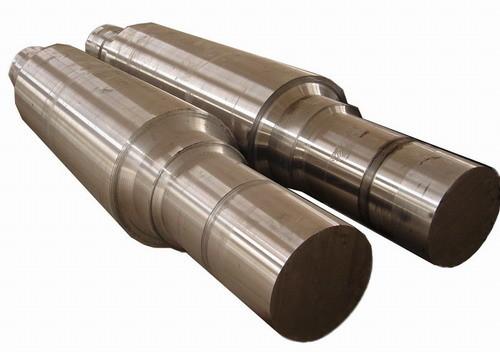

Forged Steel Rolls for Hot strip rolling mill for carton steel copper or aluminium

  • Material:H13,4130,4140,4150,4340,1035,1045,EN9,
  • EN19,EN24,EN31,51200,SUJ2,100Cr6,K310,34CrNiMo6,36CrNiMo4,
  • 42CrMo4,86CrMoV7,Cr 2%, Cr3%, Cr 5%, etc.
  • Surface Hardness: max 100 HSD
  • Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 – FBH max 4mm
  • Forging reduction ratio: ≥4
  • Manufacturing process: steel ingot→forging→rough machining→QT→2th rough machining→induction quenching→finishing machining→packing→delivery
  • Quality required: Surface defect and decarburization shall be free. All dimensions are 100% OK.
  • Marking: Heat Number, Order Number, Made in China on bar end
  • Packing: wooden box or metal pallet for protection against rust and damage.

Range: Forged rolls (weight≤50tons)

Name Specification Material
Forged Work Roll Dia. 60~ Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5,etc.
Forged Back Up Roll Dia. 240~ Dia. 1500mm 70Cr3Mo,9Cr2Mo,86CrMoV7, MC3,MC5,etc.
Forged Intermediate Roll ≤Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5 etc.
Forged Leveling Roll Dia. 30~ Dia.1000mm 60CrMoV, H13, 80CrMoV, etc
Forged Table Roll Dia. 100~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Pinch Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Driving Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Cradle Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
Forged Guide Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
Forged Piercing Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
Forged Straightening Roll Dia. 80~Dia. 900mm 60CrMoV,801CrMoV,H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc

  • Material:H13,4130,4140,4150,4340,1035,1045,EN9,EN19,EN24,EN31,51200,SUJ2,100Cr6,K310,34CrNiMo6,36CrNiMo4,42CrMo4,86CrMoV7,Cr 2%, Cr3%, Cr 5%, etc.
  • Surface Hardness: max 100 HSD
  • Ultrasonic Test: Sep 1921-84 - Test Group 3 Class D or ASTM A388 – FBH max 4mm
  • Forging reduction ratio: ≥4
  • Manufacturing process: steel ingot→forging→rough machining→QT→2th rough machining→induction quenching→finishing machining→packing→delivery
  • Quality required: Surface defect and decarburization shall be free. All dimensions are 100% OK.
  • Marking: Heat Number, Order Number, Made in China on bar end
  • Packing: wooden box or metal pallet for protection against rust and damage.

  1. Name Specification Material
    Forged Work Roll Dia. 60~ Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5,etc.
    Forged Back Up Roll Dia. 240~ Dia. 1500mm 70Cr3Mo,9Cr2Mo,86CrMoV7, MC3,MC5,etc.
    Forged Intermediate Roll ≤Dia. 1000mm 9Cr2Mo, 86CrMoV7,MC3,MC5 etc.
    Forged Leveling Roll Dia. 30~ Dia.1000mm 60CrMoV, H13, 80CrMoV, etc
    Forged Table Roll Dia. 100~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
    Forged Pinch Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
    Forged Driving Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
    Forged Cradle Roll Dia. 80~ Dia. 1000mm 1035, 1045, C35E, C40E, C45E, etc
    Forged Guide Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
    Forged Piercing Roll Dia. 80~ Dia. 1000mm 1035, 1045, 4150, 4340, 4140, etc
    Forged Straightening Roll Dia. 80~Dia. 900mm 60CrMoV,801CrMoV,H13,4140,4340,EN9,EN19,EN24,EN31,51200,etc
