Specifications
Brand Name :
SEEC
Model Number :
Rolling mill
Certification :
ISO
Place of Origin :
China
MOQ :
10
Delivery Time :
3-6months
Packaging Details :
Standard international package
Type :
Work roll backup roll intermediate roll
Material 1 :
Cast iron and steel
material 2 :
with nickel chromium nodular cast iron
material 3 :
with molybdenum nodular cast iron
drawing :
as confirmed
standard :
ISO9001
Description

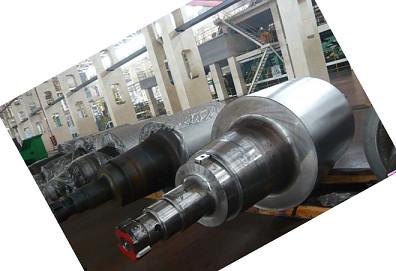

Chilled Cast Iron Rolls with nickel chromium molybdenum nodular cast iron
It mixes cast iron with nickel, chromium, molybdenum nodular cast iron, through a special heat treatment to obtain the pearlite ductile iron roll.
Pearlitic nodular cast iron roll has good strength, high temperature performance and anti accident performance, small hardness drop on the work layer.
Standard includes ISO, GB, ASTM, DIN, JIS.
OEM and ODM is available

Application
Large blooming mill,
Section steel tandem rolling,
Bar and wire rough rolling,
Intermediate rolling mill rack, milling table rollers

Chemical Composition

Roll name C Si Mn Cr Ni Mo Mg
AF1 3.00~3.50 1.60~2.40 0.40~1.00 0.10~0.40 1.20~2.00 0.20~0.60 ≥0.04
AF2 3.00~3.50 1.40~2.20 0.40~1.00 0.20~1.00 1.50~2.50 0.30~0.80 ≥0.04
AF3 3.00~3.50 1.20~2.0 0.40~1.00 0.20~1.00 2.00~3.00 0.30~0.80 ≥0.04

Physical Properties

Roll name Roll-body hardnessHSD Tensile strengthMpa
AF1 40~55 ≥360
AF2 50~65 ≥360
AF3 60~72 ≥360

pearlitic cast iron roll Chilled Cast Iron Rolls Large Blooming Chilled Rolls

pearlitic cast iron roll Chilled Cast Iron Rolls Large Blooming Chilled Rolls
