Specifications
Brand Name :
SEEC
Model Number :
CCM
Certification :
ISO
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
As required
Delivery Time :
2-3months
Packaging Details :
Standard international package
Type 1 :
square billet round billet
Material :
E-Cu, SF-Cu (DHP Cu), CuAg, Cu-Cr-Zr
Application 1 :
CCM
Application 2 :
continuous casting machine
Type 2 :
Rectangular billet
Origin :
China
Description

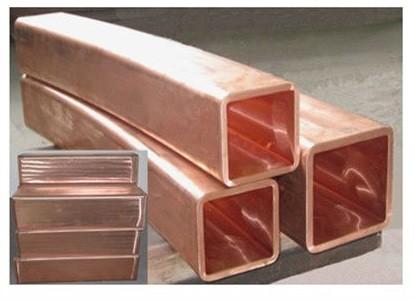

Copper mould tube for CCM Rectangular type Wall thickness 6-50mm Length 700-1000mm

Features:


· 100% high quality Chile originated Copper;
· CuDHP, CuAg0.1, CuCrZr, CuNiBe, CuCoNiBe alloy etc
· Cr/Ni/NiCo/Ceramic coating etc with various shapes;
· state of the art milling, drilling, measuring & testing facilites etc with more than 20 years manufacturing experience,

  • Situated in a critical position of continuous casting machine, copper mould requires extreme high thermal-conductivity and high strength. The molten steel will be formed into a certain shaped steel billets immediately after it passes through the copper mould.

  • Besides basic function of shaping and solidifying the steel strand, copper mould is of great influence on the economics of continuous casting lines.

  • Not only the cost, the service life of copper mould and the quality of the cast product are also considered as important factors by the users.

  • Therefore, suitable mould design as well as study of continuous casters and working conditions is making stringent demands on the manufacturers.

  • BEIJING SINO EQUIPMENT Mould Factory is one of the leading manufacturers of the copper mould in China. With more than twenty years experience and through adopting advanced German technology, BEIJING SINO EQUIPMENT copper mould has been winning acceptance from the users worldwide.

  • Our specialized know-how, quality control and service enable us to satisfy the market’s changing requirements. Concentrating on adaptability to the improvement of continuous casting technology with continuously ongoing research and development word, BEIJING SINO EQUIPMENT is providing optimal solutions to your moulds.
Material Chemical Composition Mechanical Properties Electric Conductivity (%IACS)

Cu
(%)

Others
(%)

 Tensile Strength σ b (N/mm2) Yield Strength σ 0.2 (N/mm2)

Elongation
δ
(%)

 Hardness (HB)
E-Cu ＞99.90 200 40 40 45 98
SF-Cu ＞99.85 P0.015-0.040 240-310 190-250 25-10 80-95 85
CuAg ＞99.50 Ag0.08-0.12 240-310 200-225 16-10 110-125 95
Cu-Cr-Zr ＞98.0

Cr0.3-1.2
Zr0.08-0.3

 375-445 280-355 20-13 115-130 80

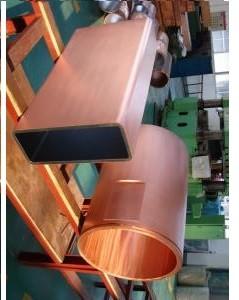

Product Scope:

Size

Square: □ 80mm~500mm
Arc Radius: 4000-17000mm
Wall thickness:6-50mm
Length: 700-1000mm

Rectangular: 100-500mm×650mm
Arc Radius: 4000-17000mm
Wall thickness:6-50mm
Length: 700-1000mm

Round: Ф110-Ф1200mm
Arc Radius: 5000-17000mm
Wall thickness:10-50mm
Length: 700-1000mm


H-beam: Intergrated stype
Arc Radius: 6000-17000mm
Wall thickness:12-50mm
Length: 780-1016mm
Coating Coating material: Cr, Ni-Cr, Ni-Fe or Ni-co

Material E-Cu, SF-Cu (DHP Cu), CuAg, Cu-Cr-Zr
Design Square, rectangular, round , plate, H beam
Straight or curved
Outer contour parallel
Internal geometries: parallel, single tapered, double tapered, multi-tapered, parabolic tapered, convex tapered

No.

Length
(mm)

Section
Dimension
(mm)

Curved
Radius
(mm)

Wall
Thickness
(mm)

Outer
Corner
Radius
(mm)

Inner
Corner
Radius
(mm)

Cr-Coating
Thickness
(mm)
1 700 □80×80 7000 10 16 6 0.13
2 812 □90×90 7000 10 16 6 0.13
3 700 □90×90 5250 10 18 8 0.06~0.08
4 700 □100×100 6000 10 18 8 0.06~0.08
5 750 □100×100 6000 10 16 6 0.06~0.08
6 812 □100×100 4000 11 17 5 0.07~0.09
7 801 □101×101 4000 6 12 6 0.10
8 780 □110×110 5000 8 16 8 0.06~0.08
9 801 □110×110 6000 8 14 6 0.06~0.08
10 887.2 □110×110 6000 9.5 12.5 3 0.075
