Specifications
Brand Name :
SEEC
Model Number :
CCM
Certification :
ISO
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
As required
Delivery Time :
2-3months
Packaging Details :
Standard international package
Type 1 :
square billet
Type 2 :
round billet
Type 3 :
Rectangular billet
Type 4 :
H beam
Material :
CuAg, Cu-Cr-Zr
Taper :
Single
Description

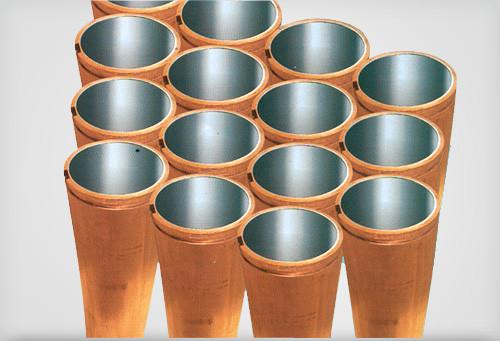

Copper mould tube for CCM Coating material Cr Ni-Cr Ni-Fe Ni-co

  • Situated in a critical position of continuous casting machine, copper mould requires extreme high thermal-conductivity and high strength. The molten steel will be formed into a certain shaped steel billets immediately after it passes through the copper mould.

Besides basic function of shaping and solidifying the steel strand, copper mould is of great influence on the economics of continuous casting lines.

  1. Not only the cost, the service life of copper mould and the quality of the cast product are also considered as important factors by the users.

Therefore, suitable mould design as well as study of continuous casters and working conditions is making stringent demands on the manufacturers.

Material Chemical Composition Mechanical Properties Electric Conductivity (%IACS)

Cu

(%)

Others

(%)

 Tensile Strength σ b (N/mm2) Yield Strength σ 0.2 (N/mm2)

Elongation

δ

(%)

 Hardness (HB)
E-Cu ＞99.90 200 40 40 45 98
SF-Cu ＞99.85 P0.015-0.040 240-310 190-250 25-10 80-95 85
CuAg ＞99.50 Ag0.08-0.12 240-310 200-225 16-10 110-125 95
Cu-Cr-Zr ＞98.0

Cr0.3-1.2

Zr0.08-0.3

 375-445 280-355 20-13 115-130 80

Material E-Cu, SF-Cu (DHP Cu), CuAg, Cu-Cr-Zr

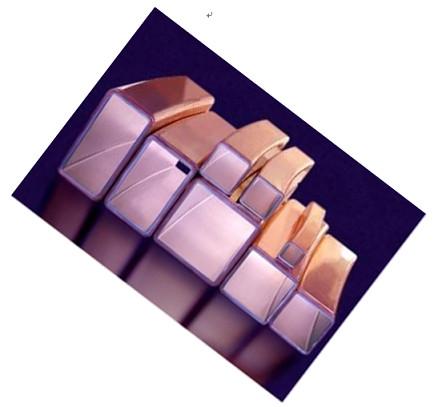

Design Square, rectangular, round , plate, H beam
Straight or curved
Outer contour parallel
Internal geometries: parallel, single tapered, double tapered, multi-tapered, parabolic tapered, convex tapered

Product Scope:

Size

Square: □ 80mm~500mm

Arc Radius: 4000-17000mm

Wall thickness:6-50mm

Length: 700-1000mm

Rectangular: 100-500mm×650mm

Arc Radius: 4000-17000mm

Wall thickness:6-50mm

Length: 700-1000mm

Round: Ф110-Ф1200mm

Arc Radius: 5000-17000mm

Wall thickness:10-50mm

Length: 700-1000mm

H-beam: Intergrated stype

Arc Radius: 6000-17000mm

Wall thickness:12-50mm

Length: 780-1016mm
Coating Coating material: Cr, Ni-Cr, Ni-Fe or Ni-co

21 1000 □135×135 6000 10 20 10 0.06~0.08
22 810 □135×135 5250 12.3 18.3 6 0.07~0.09
23 780 □140×140 7000 11 16 6 0.06~0.08
24 801 □140×140 10250 12 18 6 0.06~0.08
25 812 □140×140 8000 12.3 20 8 0.10
26 835 □140×140 7924.8 12.5 17 6 0.10~0.12
27 800 □143×143 straight 11 21 10 0.06~0.08
28 700 □150×150 9000 12 20 8 0.08~0.10
29 780 □150×150 6000 12.5 18 5 0.08~0.10
30 780 □150×150 straight 10 22 12 0.06~0.08
31 800 □150×150 5250 12 20 8 0.08~0.10
32 810 □150×150 6000 12 22 10 0.06~0.08
33 812 □150×150 5250 15 27 12 0.06~0.08
34 812 □150×150 8000 12 18 6 0.13
35 850 □150×150 6000 12 20 8 0.06~0.08
