Specifications
Brand Name :
SEEC
Model Number :
CCM
Certification :
ISO
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
As required
Delivery Time :
2-3months
Packaging Details :
Standard international package
Type 1 :
round bloom
Material 1 :
E-Cu, SF-Cu (DHP Cu),
Application :
CCM
Material 2 :
CuAg, Cu-Cr-Zr
Application 2 :
continuous casting machine
Type 2 :
round billet
Description

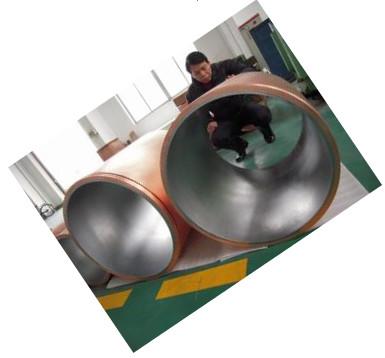

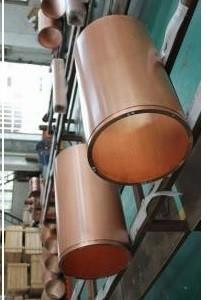

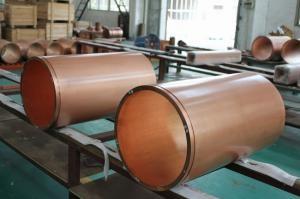

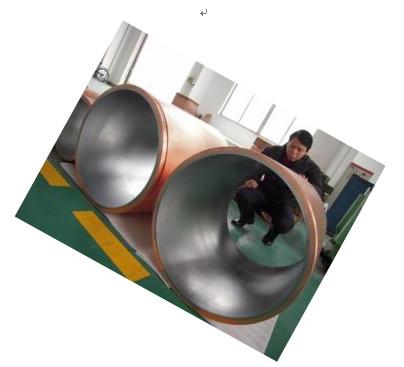

Copper mould tube for CCM Ф110-Ф1200mm round blank quadruplicate taper

  1. Situated in a critical position of continuous casting machine, copper mould requires extreme high thermal-conductivity and high strength. The molten steel will be formed into a certain shaped steel billets immediately after it passes through the copper mould.
  2. Besides basic function of shaping and solidifying the steel strand, copper mould is of great influence on the economics of continuous casting lines.
  3. Not only the cost, the service life of copper mould and the quality of the cast product are also considered as important factors by the users.
  4. Therefore, suitable mould design as well as study of continuous casters and working conditions is making stringent demands on the manufacturers.
  • We supply high quality and durable copper mould tube with most competitive price and prompt delivery.
  • Our Copper Mould Tube meet ISO9001 standards,high precision and meet hardness requirement, perfect taper and coated layer.
  • We have complete facilities to process every copper mould tube,galvanize plating,hardness testing to provide accurate Chromium plating to the Mould Tubes to achieve high performance in heat resistance.
  • We manufacture thousands pieces of copper mould tube every month and supply to several biggest Steel Group in China which proved that our product is most trusted and satisfy by our customers.

1.material
Material Chemical Composition Mechanical Properties Electric Conductivity (%IACS)

Cu

(%)

Others

(%)

 Tensile Strength σ b (N/mm2) Yield Strength σ 0.2 (N/mm2)

Elongation

δ

(%)

 Hardness (HB)
E-Cu ＞99.90 200 40 40 45 98
SF-Cu ＞99.85 P0.015-0.040 240-310 190-250 25-10 80-95 85
CuAg ＞99.50 Ag0.08-0.12 240-310 200-225 16-10 110-125 95
Cu-Cr-Zr ＞98.0

Cr0.3-1.2

Zr0.08-0.3

 375-445 280-355 20-13 115-130 80

2. Product Scope:

Size

Square: □ 80mm~500mm

Arc Radius: 4000-17000mm

Wall thickness:6-50mm

Length: 700-1000mm

Rectangular: 100-500mm×650mm

Arc Radius: 4000-17000mm

Wall thickness:6-50mm

Length: 700-1000mm

Round: Ф110-Ф1200mm

Arc Radius: 5000-17000mm

Wall thickness:10-50mm

Length: 700-1000mm

H-beam: Intergrated stype

Arc Radius: 6000-17000mm

Wall thickness:12-50mm

Length: 780-1016mm
Coating

Coating material: Cr, Ni-Cr, Ni-Fe or Ni-co

Material E-Cu, SF-Cu (DHP Cu), CuAg, Cu-Cr-Zr
Design Square, rectangular, round , plate, H beam
Straight or curved
Outer contour parallel
Internal geometries: parallel, single tapered, double tapered, multi-tapered, parabolic tapered, convex tapered

3. Round Mould

No.

Length

(mm)

Section

Dimension

(mm)

Curved

Radius

(mm)

Wall

Thickness

(mm)

Cr-Coating Thickness

(mm)
1 780 Ф156 9000 14 0.10
2 780 Ф178 9000 14 0.10
3 850 Ф300 9000 14 0.10
4 1000 Ф500 9000 14 0.10
5 1000 Ф800 9000 14 0.10
