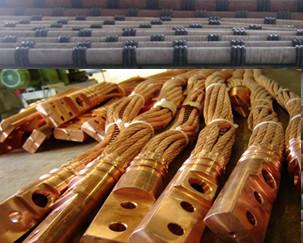

Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Specifications
Brand Name :
SEEC
Model Number :
EAF , LF & BOF
Certification :
ISO
Place of Origin :
Chia
MOQ :
5
Supply Ability :
As required
Delivery Time :
1-3months
Packaging Details :
Standard international package
Type :
Water Cooled Power Cable
Material :
Copper
Application 1 :
Electric arc furnace
Application 2 :
ladle furnace
Application 3 :
EAF
Application 4 :
LF VOD
Description

Water Cooled Power Cable Electric arc furnace ladle furnace EAF LF

Brief Introduction

Water-Cooled Cable is one of the important parts used in Electric Arc Furnace (EAF) and Ladle furnace (LF).

As one of the earliest manufacturers in China, BEIJING SINO STEEL ENGINEERING & EQUIPMENT CO., LTD. has more than 20 years of experiences in this field. Our products are widely used by more than 80 Large & Medium sized Metallurgical & Machinery enterprises in China and World.

Our products are divided into two series:

SDL (wire twisted type)

RSL (wire woven type)

Selection of Water-cooled Cable for EAF & LF

Table I

Transformer Parameter SDL Series RSL Series
Rated Capacity (KVA) Rated Current (A) Model Section Area mm2/pcs

Pcs For Per

Phase

 Model Section Area mm2/pcs

Pcs For Per

Phase
630 1819 SDL400 400 1
800 2309 SDL500 500 1
1000 2887 SDL900 900 1
1250 3437 SDL900 900 1 RSL1000 1000 1
1600 4399 SDL1200 1200 1 RSL1000 1000 1
2000 5499 SDL1200 1200 1 RSL1200 1000 1
2500 6561 SDL1600 1600 1 RSL1500 1000 1
3150 8267 SDL2000 2000 1 RSL1800 1800 1
4000 9623 SDL2500 2500 1 RSL2000 2000 1
5000 12029 SDL3000 3000 1 RSL2500 2500 1
6300 13900 SDL3500 3500 1 RSL2800 2800 1
8000 17765 SDL4000 4000 1 RSL3600 3600 1
10000 24056 SDL3000 3000 2 RSL2500 2500 2
12500 26729 SDL3500 3500 2 RSL2800 2800 2
16000 30287 SDL4000 4000 2 RSL3200 3200 2
20000 33962 SDL4000 4000 2 RSL3600 3600 2
25000 37974 SDL4500 4500 2 RSL4000 4000 2
31500 42792 SDL5000 5000 2 RSL4500 4500 2
40000 48619 SDL4000 6000 2 RSL5000 5000 2
50000 54467 SDL4000 4000 3 RSL4000 4000 3
63000 62176 SDL4500 4500 3 RSL4500 4500 3
80000 69982 SDL6000 6000 3 RSL5000 5000 3
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
Ladle furnace Heavy - Current Water Cooled Power Cable Rated High Voltage With Hose Fit Surge Protection
