Specifications
Brand Name :
SEEC
Model Number :
EAF and LF
Certification :
ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
As required
Delivery Time :
1-3months
Packaging Details :
International standard package
Type 1 :
Electric Arc Furnace
Material 1 :
Copper
Material 2 :
steel
Type 2 :
EAF LF
Type 3 :
Ladle furnace
Type 4 :
CURRENT CONDUCTING ELECTRODE ARM assembly
Description

Electric Arc Furnace Electrode Arm clamping device Copper clad explosion plate

  • The clamping device is easily accessible for inspection and repairs.
  • The clamp ring can be quickly removed in the event of damage from electrode breakage or arcing.
  • Copper clad explosion plate is used in the construction of the arms to ensure there is no lamination in the material.

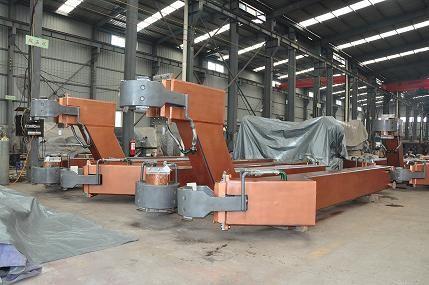

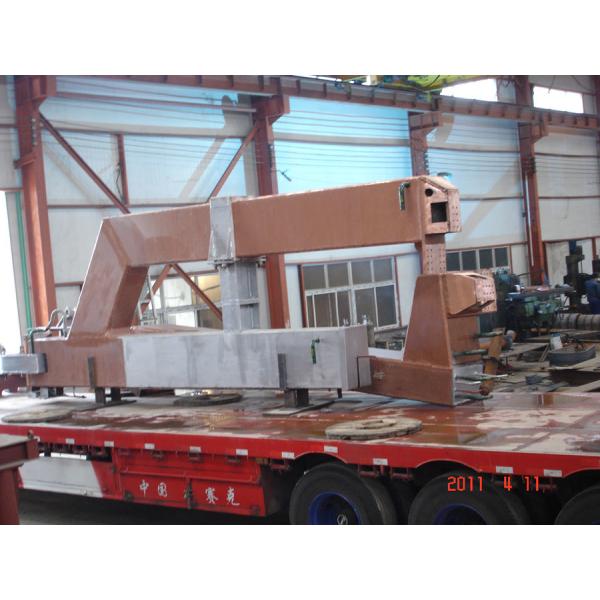

  • The arms are made of a rectangular welded box type design and copper plated in the areas of main current flows.

  • The terminal connections for the cables will be made of a forged copper section which will accept your current cables with no modifications.
  • The entire arm body is water cooled from inside.
  • All critical components on the electrode arms are protected within the copper clad steel. This includes the water piping for the spray rings and the hydraulic lines for the clamping mechanism.
  • The electrode shoe is designed for a flat connection to the arm body. This allows for easy replacement and repairability. Alignment of the shoe is simplified and costs are reduced.

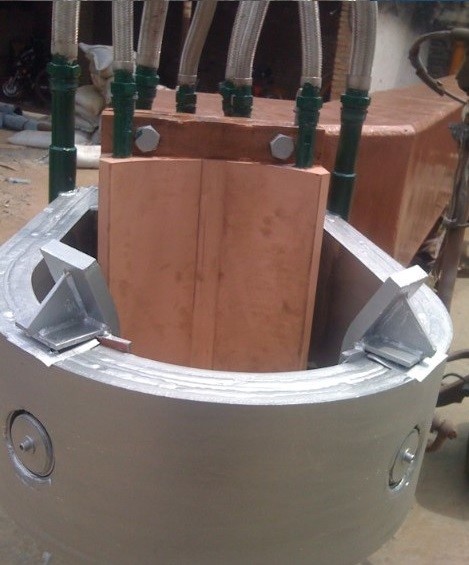

  • The contact shoe is made of forged copper with bored water cooling channels to achieve good heat transfer. Water supply is maintained by a flanged water connection.


Application:

This product found its application in the following industries

  1. Steel Plants ( EAF, LF Etc.)
  2. Ferro Alloy Plants
  3. Calcium carbide Plants
  4. Furnace manufacturers etc.
№ CUSTOMER PRODUCT COUNTRY REMARK
1 Bao I/S Group EAF & LF CHINA

ROOF,
WATER COOLED PIPE,
ELECTRODE ARM,
INCLUDED
2 WISCO. Group EAF & LF CHINA

ROOF,
WATER COOLED PIPE,
ELECTRODE ARM,
INCLUDED
3 TISCO EAF & LF CHINA

ROOF,
WATER COOLED PIPE,
ELECTRODE ARM,
INCLUDED
4 Sha I/S Group EAF & LF CHINA

ROOF,
WATER COOLED PIPE,
ELECTRODE ARM,
INCLUDED
5 Capital I/S Group EAF & LF CHINA

ROOF,
WATER COOLED PIPE,
ELECTRODE ARM,
INCLUDED
