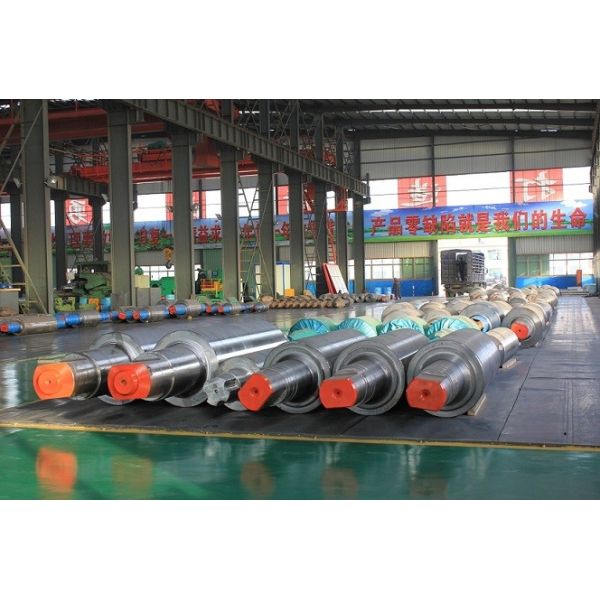

Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
Specifications
Brand Name :
SEEC
Model Number :
Rolling mill
Certification :
ISO
Place of Origin :
China
MOQ :
10
Delivery Time :
3-6months
Packaging Details :
Standard international package
Type :
Work roll backup roll intermediate roll
Material :
Cast iron and steel
process :
ALLOY CHILLED
application :
Rougher of bar wire and section mills
standard :
ISO9001
Drawing :
as confirmed
Description

Chilled Cast Iron Rolls for Rougher of bar wire and section mills

  1. ALLOY CHILLED CAST IRON ROLLS

  • ◆ SUMMARY

It is a kind of cast iron roll with free graphite in the matrix of its working layer.

It is shaped by Centrifugal Casting Machine, or by gravity casting.

  • ◆ CHARACTERISTICS

Alloy chilled cast iron roll has high hardness and excellent wearability

Its microstructure is fine pearlite and carbide.

  • ◆ APPLICATION

It is suitable for finish stands for small bar,

wire and section mills, as well as narrow strip mills.

  • ◆ MECHANICAL PROPERTIES

Symbol

Hardness

(HS)

Tensile strength

(MPa)

Bending strength

(MPa)
CC1 60~70 ≥150 300~400
CC2 60~75 ≥160 300~400

CC3 65~80 ≥300 500~700
CC4 70~85 ≥300 500~700

Symbol

Hardness

(HS)

Tensile

strength

(MPa)

Bending

strength

(MPa)

 Application
SG1 40~55 ≥300 500~700 Rougher of bar, wire and section mills.
SG2 50~70 ≥300 500~700
SG3 55~70 ≥300 500~700
SG4 55~70 ≥300 500~700

SG5 60~70 ≥300 600~800 Finish stands of small section mills and narrow hot strip mills.
SG6 62~70 ≥320 600~800
SHD1 58~70 ≥300 600~800 Folding sheet mill
SGD2 58~70 ≥300 600~800

Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls

Large Size and High Hardness Backup roll and Intermediate Chilled Cast Iron Rolls
