Specifications
Brand Name :
SEEC
Model Number :
CCM
Certification :
ISO
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
As required
Delivery Time :
2-3months
Packaging Details :
Standard international package
Type 1 :
square billet
Type 2 :
round billet
Type 3 :
Rectangular billet
Type 4 :
H beam
Material :
CuAg, Cu-Cr-Zr
Taper :
triple taper
Description

Copper mould tube for CCM round bloom NiFe coating Nico coating

Mould's key features:
· 100% high quality Chile originated Copper;
· CuDHP, CuAg0.1, CuCrZr, CuNiBe, CuCoNiBe alloy etc
· Cr/Ni/NiCo/Ceramic coating etc with various shapes;
· state of the art milling, drilling, measuring & testing facilites etc with more than 20 years manufacturing experience,

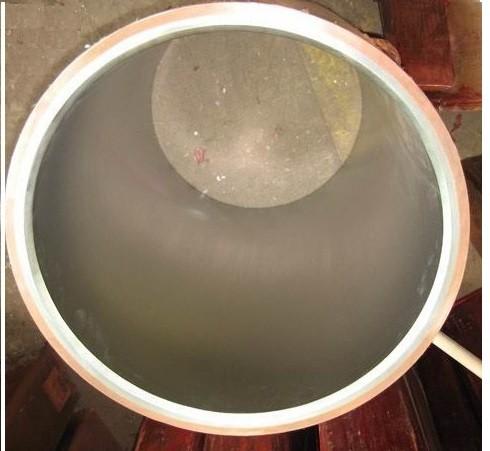

Round Mould

No.

Length

(mm)

Section

Dimension

(mm)

Curved

Radius

(mm)

Wall

Thickness

(mm)

Cr-Coating Thickness

(mm)
1 780 Ф156 9000 14 0.10
2 780 Ф178 9000 14 0.10
3 850 Ф300 9000 14 0.10
4 1000 Ф500 9000 14 0.10
5 1000 Ф800 9000 14 0.10

BEIJING SINO EQUIPMENT Mould Factory is one of the leading manufacturers of the copper mould in China. With more than twenty years experience and through adopting advanced German technology, BEIJING SINO EQUIPMENT copper mould has been winning acceptance from the users worldwide.

Our specialized know-how, quality control and service enable us to satisfy the market’s changing requirements. Concentrating on adaptability to the improvement of continuous casting technology with continuously ongoing research and development word, BEIJING SINO EQUIPMENT is providing optimal solutions to your moulds.

Square

30 780 □150×150 straight 10 22 12 0.06~0.08
31 800 □150×150 5250 12 20 8 0.08~0.10
32 810 □150×150 6000 12 22 10 0.06~0.08
33 812 □150×150 5250 15 27 12 0.06~0.08
34 812 □150×150 8000 12 18 6 0.13
35 850 □150×150 6000 12 20 8 0.06~0.08
36 780 □160×160 7000 12 17 6 0.06~0.08
37 790 □160×160 6000 14.5 24 6 0.10
38 812 □160×160 6000 12.5 20 8 0.12
39 1000 □160×160 6000 12 20 8 0.08~0.10
40 800 □165×165 6000 12 22 10 0.06~0.08
41 800 □175×175 6000 12 20 8 0.05~0.07
42 700 □180×180 12000 14 22 8 0.06~0.08
43 801 □180×180 10250 14.5 20 6 0.06~0.08
44 1000 □200×200 6000 14 20 6 0.06~0.08
45 1000

□260×260

 10250 21 28 8 0.08~0.10
46 1000 □300×300 12000 22 28 6 0.08~0.10
Material
Material Chemical Composition Mechanical Properties Electric Conductivity (%IACS)

Cu

(%)

Others

(%)

 Tensile Strength σ b (N/mm2) Yield Strength σ 0.2 (N/mm2)

Elongation

δ

(%)

 Hardness (HB)
E-Cu ＞99.90 200 40 40 45 98
SF-Cu ＞99.85 P0.015-0.040 240-310 190-250 25-10 80-95 85
CuAg ＞99.50 Ag0.08-0.12 240-310 200-225 16-10 110-125 95
Cu-Cr-Zr ＞98.0

Cr0.3-1.2

Zr0.08-0.3

 375-445 280-355 20-13 115-130 80

Product Scope:

Material E-Cu, SF-Cu (DHP Cu), CuAg, Cu-Cr-Zr

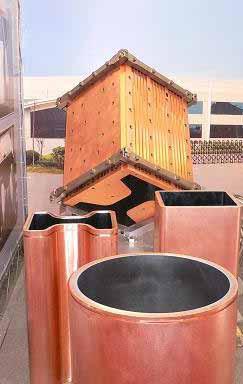

Design Square, rectangular, round , plate, H beam
Straight or curved
Outer contour parallel
Internal geometries: parallel, single tapered, double tapered, multi-tapered, parabolic tapered, convex tapered
Size

Square: □ 80mm~500mm

Arc Radius: 4000-17000mm

Wall thickness:6-50mm

Length: 700-1000mm

Rectangular: 100-500mm×650mm

Arc Radius: 4000-17000mm

Wall thickness:6-50mm

Length: 700-1000mm

Round: Ф110-Ф1200mm

Arc Radius: 5000-17000mm

Wall thickness:10-50mm

Length: 700-1000mm

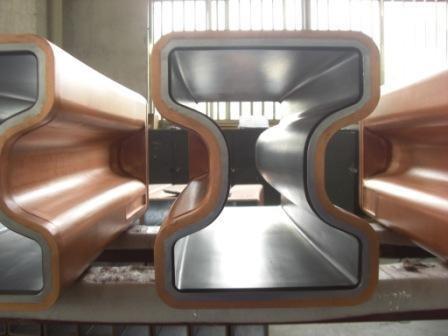

H-beam: Intergrated stype

Arc Radius: 6000-17000mm

Wall thickness:12-50mm

Length: 780-1016mm
Coating Coating material: Cr, Ni-Cr, Ni-Fe or Ni-co
