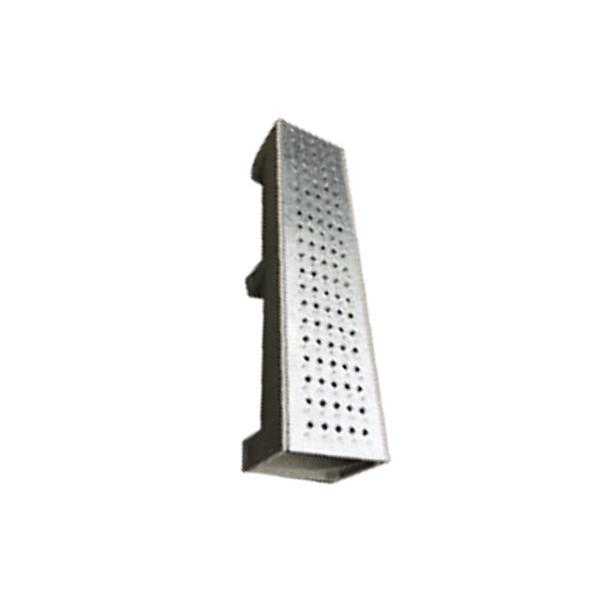

Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate
Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate
Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate
Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate
Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate
Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate
Specifications
Brand Name :
OEM&ODM
Model Number :
PC100*(130-250)15~PC300*(260-600)30
Place of Origin :
CHINA
MOQ :
1Piece
Price :
USD20/PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Ton/Tons per Month polymer concrete channel
Delivery Time :
15~45 days after order
Packaging Details :
Pallet or as customer's request
Model Number: :
PC100*(130-250)15
Product name: :
Drain Gutter
Loading: :
A15/B125
Material: :
Punching grating
Width (Inner) :
100MM
Width (Outer) :
130MM
Description

Walkway Water Drainage Channel / Polymer Concrete Trench Drain With Slotted Grate

A15 / B125 Polymer concrete channel with stainless steel puching grating


Description:


1. Resin concrete material, strong bearing capacity, corrosion resistance, frost resistance, long service life,maintenance-free;
2. Compared with the traditional drainage ditch, the surface is smooth.
3. Adopt socket connection, easy to install;
4. Composition of the system: drainage ditch structure, cover plate, inspection wells and accessories.

Applications:

The resin-concrete matrix trench can meet the requrimeets of strength standard of EN-1433 from A15 to D400 .Its application area include side works ,public transport roads,public squares,cars parks and all other areas vehicles entrance permitted

Specifications:

Polymer concrete channel with stainless steel puching grating
Item code Width (Inner) mm Width(Outer) mm Total height mm Edges Loading
PC100*(130-250)15 100 130 130 N A15/B125
100 130 150 N A15/B125
100 130 180 N A15/B125
100 130 210 N A15/B125
100 130 250 N A15/B125
Grating option
Item code Length mm Width mm Material Loading
Punching grating 500/1000 as per channel galvanized steel / stainless steel A15-D400


Competitive Advantage/ Features:

1) . Durability and stability;

2) . Without contamination hazard;

3) . Higher compressive strength and bending strength;

4) . Long lasting and require minimal maintenance;

5). Resistance to abrasion, weathering, water penetration and freeze-thaw cycles.

6). Easy to install, consuming far less labor, lower installation cost.
