Resin Concrete Gutter Drain Gutter Channel , Drainage Rainwater Drainage Channel
Resin Concrete Gutter Drain Gutter Channel , Drainage Rainwater Drainage Channel
Resin Concrete Gutter Drain Gutter Channel , Drainage Rainwater Drainage Channel
Resin Concrete Gutter Drain Gutter Channel , Drainage Rainwater Drainage Channel
Resin Concrete Gutter Drain Gutter Channel , Drainage Rainwater Drainage Channel
Resin Concrete Gutter Drain Gutter Channel , Drainage Rainwater Drainage Channel
Specifications
Brand Name :
OEM&ODM
Model Number :
PS100*(130-250)15~PS300*(330-480)20
Place of Origin :
CHINA
MOQ :
1Piece
Price :
USD20/PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Ton/Tons per Month polymer concrete channel
Delivery Time :
15~45 days after order
Packaging Details :
Pallet or as customer's request
Model Number: :
PS250*(250-400)20
Product name: :
EN1433 Polymer concrete channel
Loading: :
B125/C250
Material: :
Polymer grating
Width (Inner) :
250MM
Width (Outer) :
290MM
Description

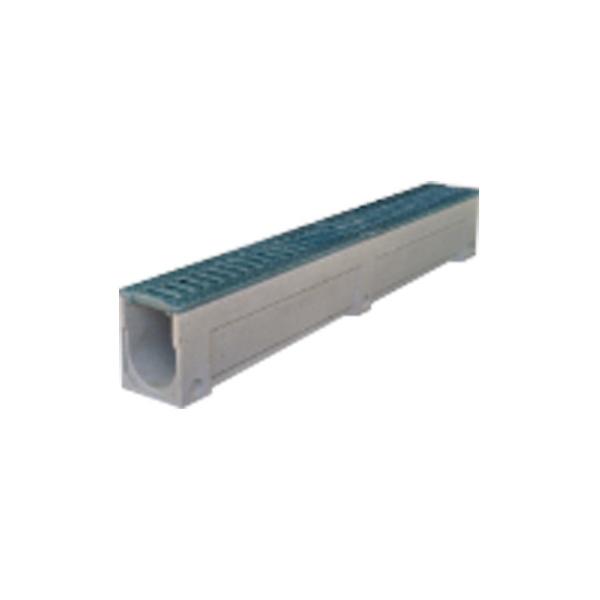

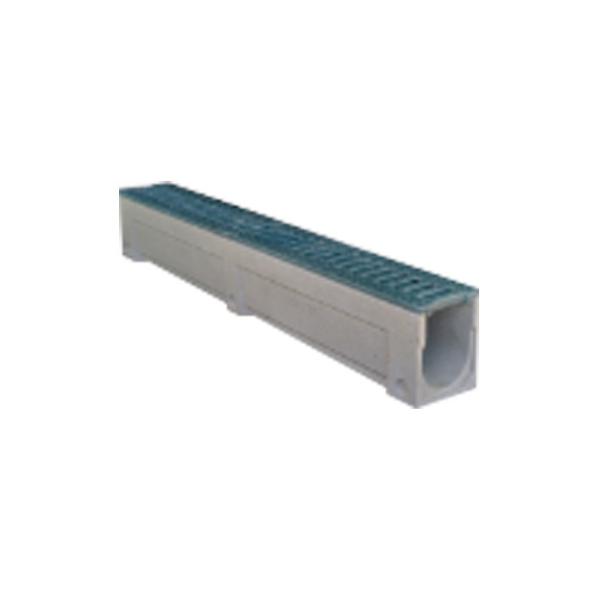

B125 C250 Polymer Concrete Drainage Channel

Installation instructions for precast polymer concrete systems and channels

1) Pour a good-quality concrete into the base of the trench.

2) Place the channels on a concrete bedding with a base as per the minimum recommended.

3) To prevent damage such as lateral compression,place wooden planks or the gratings suitably protected in the channel

4) Pour the concrete along the sides of the channel.

5) Fasten the gratings using the appropriate locking system.

Specifications:

Dimension List of Polymer Concrete Drainage Channel

We can provide customized sizes per client's request.

Polymer concrete channel
Item code Width (Inner) mm Width(Outer) mm Total height mm Edges Loading
PS250*(250-400)20 250 290 250 Y/N B125/C250
250 290 300 Y/N B125/C250
250 290 350 Y/N B125/C250
250 290 400 Y/N B125/C250
Grating option
Item code Length mm Width mm Material Loading
Polymer grating 500/1000 as per channel polymer concrete A15-C250


Advantages of Polymer Concrete Gutter:

1) The material is polymer concrete, more lightweight, non-freezing.
2) Flat surfaces for a smooth-flowing of liquids, avoiding, at the same time, internal sediment of any kind
of substances.
3) Polymer concrete has better strength to corrosion, chemical agents and loadings.
4) The polymer concrete drainage channels’ water absorption below the 0.3%.
5) Possible to carry out very small handcrafts with good accuracy.
