Panel Installation Led Keypad Multifuctional Ip67 Protection Level Anti Pickling
Panel Installation Led Keypad Multifuctional Ip67 Protection Level Anti Pickling
Specifications
Brand Name :
guangzhi
Model Number :
GZ-Z010043
Certification :
CE、FCC、RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T, Paypal
Supply Ability :
100000pcs
Delivery Time :
10-20 work days
Packaging Details :
Individual product package size:235*150*50mm, Carton Size:482*320*275;
Application :
ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.
Connection :
USB or PS2
Material :
stainless steel
Warranty :
1 Year
Life cycle :
>5 million operations
Protection level :
IP67
Description

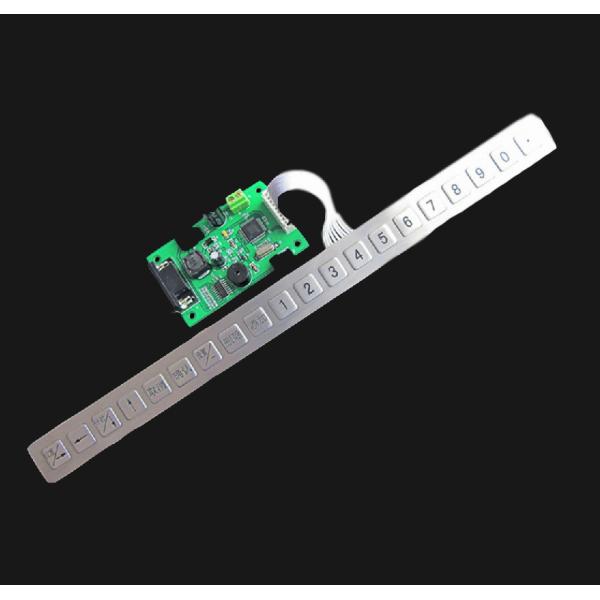

Digital keypad assembly line 20 digital keys digital ATM keypad reader panel installation led keypad with USB interface

Prod uct Name:

Metal Function Keypad

Product model:

GZ-Z010043

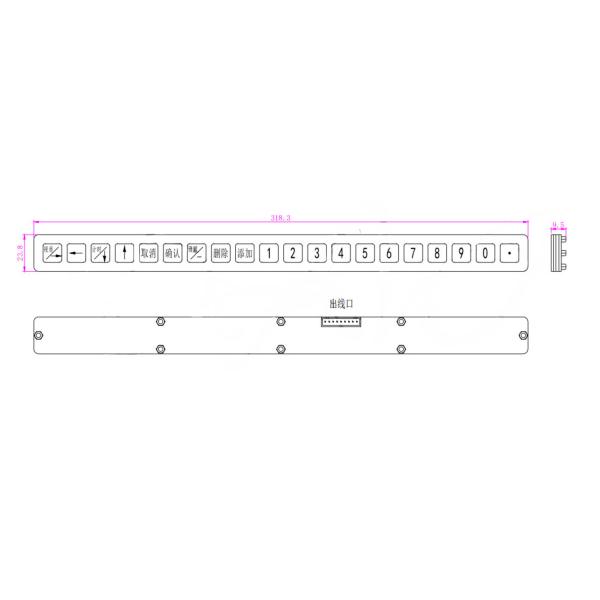

Panel (w × h):

318.3x23.8mm

Main features:

System requirements: Win XP / 7 / 8 / 10

Conform to ISO / iec9995 and GB / t14081 standards;

Actuator / key material: 304 35; (RoHS) stainless steel;

Dustproof, waterproof, shockproof, anti pickling, anti drilling, explosion-proof;

Contact material: carbon / gold;

Protection class: IEC / DIN / en / 60529: IP65;

IK protection class: DIN EN 50102: ik07;

Interface: 5-pin connector;

Gross weight: 0.3KG;

Application:

ATM, self service kiosk, industrial control, medical equipment

Institutional features:

Switch life: more than 3 million operations;

Key stroke: 1.5mm;

Service life: > 10 years;

Driving force: 1n

Power processing: less than 1 watt (dynamic), less than 200 Watt (static)

Environmental adaptability:

Protection grade: IP65 (static) / IP54 (dynamic);

Working temperature: - 25 ℃ ~ + 45 ℃ relative humidity: 30-90%;

Storage temperature: - 35 ℃ ~ + 55 ℃; relative humidity: 20-95%;

Air pressure: 60 ~ 106kpa

Approval:

Pass the certification of central bank card test center;

CE,RoHS,FCC

usage

ATM, self service kiosk, access control, medical equipment

Minimum order quantity

No minimum order limit, 1 available

Material Science

Stainless steel

Sample delivery time

2-3 working days

Key life

>3 million times of pressure
