15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface
15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface
15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface
15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface
Specifications
Brand Name :
guangzhi
Model Number :
GZ-H001057
Certification :
CE、FCC、RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T, Paypal
Supply Ability :
100000pcs
Delivery Time :
10-20 work days
Packaging Details :
Individual product package size:235*150*50mm, Carton Size:482*320*275;
Application :
ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.
Connection :
4-core aviation connector
Material :
ABS
Interface :
USB
Wired :
Yes
warranty :
1Year
Description

Prod uct Name: Industrial Plastic Keyboard

Product P/N:GZ-H001057

Product Size: 135*85*65mm

Product Description: The bank password keypad solves a series of software and hardware incompatibility problems caused by the bank's complicated terminal and inconsistent driver interface programs. It can be connected to PC and STAR series terminals, GW series terminals, WYSE terminals, New World terminals, Guoguang terminals, Haiwei terminals, purple pin terminals and other major domestic and foreign terminal manufacturers. Different cables can be matched according to user requirements to suit various terminal requirements

Keyboard send command:

0-9 key: send, display the value in real time

Clear: Send (0x08) and clear the screen

F1:Send(0*41)

F2:Send(0*42)

Enter:Send(0x0d)and clear the screen

.:Send(0x2e)

Communication command:

Communication Protocol : RS232,19200,N,8,1.

1.Clear screen:
Format:ESC C 0

HEX:1B 43 30

2. Display character command

Format: ESC S 0 BYTE[0..6] CR

HEX:1B 53 30 BYTE[0..6] 0D

Note: The character set displayed by the LED is limited to 0-9 and space keyboard

For example: To display 123.67, the transfer number is:

HEX: 1B 53 30 20 31 32 B3 36 37 0D

Product Image:

15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface

15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface

15 Keys Pin Code Keypad Desktop Type With 4 Core Aviation Head Interface

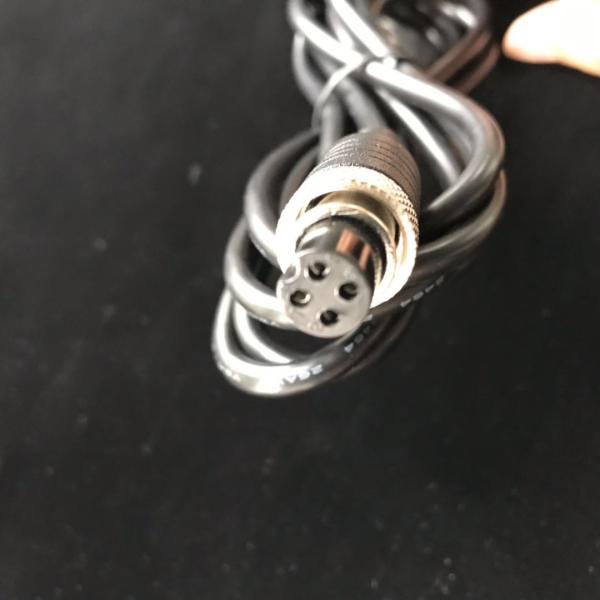

Interface definition:

1 5V
2 TXD
3 RXD
4 VBUS
