Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout
Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout
Specifications
Brand Name :
guangzhi
Model Number :
GZ-B023013
Certification :
CE、FCC、RoHS、IP67
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T, Paypal
Supply Ability :
100000pcs
Delivery Time :
10-20 work days
Packaging Details :
Individual product package size:235*150*50mm, Carton Size:482*320*275;
Application :
ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.
Connection :
USB,PS2,R232,8P
Material :
stainless steel
Number of keys :
16Key
Storage temperature :
-40°C to +85°C (-40°to 185°F), -40°C (-40°F) to +70°C (158°F)
Key travel :
0.45mm
Description

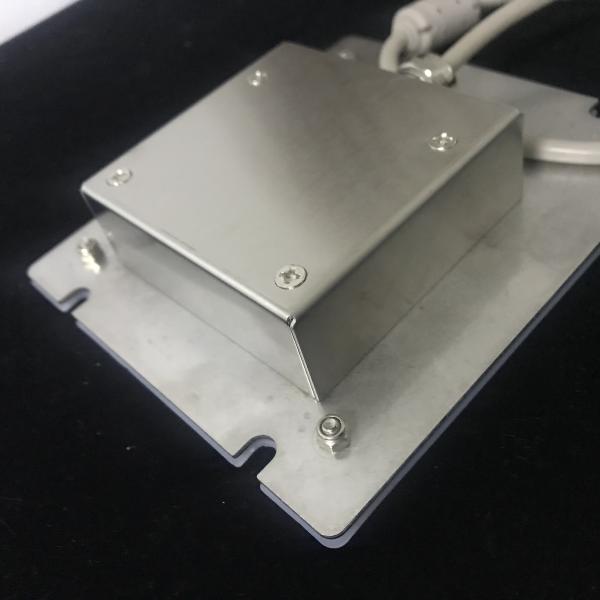

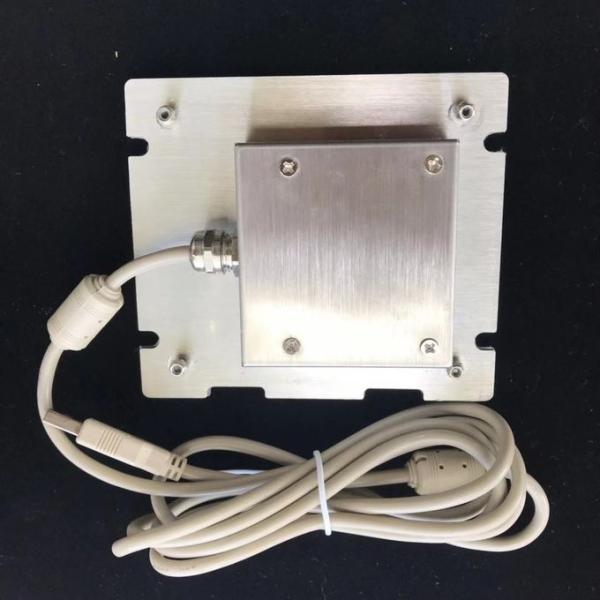

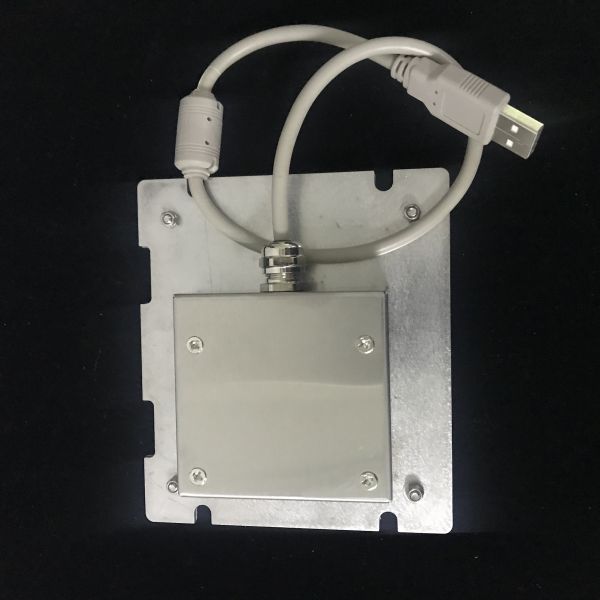

USB interface lock keyboard, 16 key waterproof industrial stainless steel keypad

Product Name: IP67 metal keypad

Product P/N:GZ-B023013-002

Product Size: 100*90mm

Product Description:Waterproof stainless steel keyboard, numeric keys and six function keys, compact layout of buttons, 0.5mm long button stroke, installation method from inside to outside, the whole thickness is: 30.6mm, with full waterproof silicone design, waterproof grade IP67, stainless steel Panel and laser engraved button design, the mold is matched with precise and accurate, and the surface treatment is beautiful and generous;

Product Application:

It mainly applied to various kinds of place of no regulation or semi-regulatio information terminal; for example internet terminal University, Market Hotel, Bank,Airport,Station,and another information station of public place,Automatic ticket rendor,Gas station,Automatic Teller Machine(ATM),Public telephone ect;

Electric parameter:
1. Operating current: Direct current+5V/-5%
2 working current:20mA
3 Expected life-time:>5yer
4. Button switch technology: Rubber key
5. Interface Technology:USB,PS2,R232,8PIN
6. Operating System:DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac osx
Environmental adaptation:

Operating Temperature

-20℃to+60℃

Storage Temperature

-30℃to+70℃

Relative Humidity

30-90% without Condensation dew

Atmospheric Pressure

50-100Kpa

IP Level

IP67( static state ) / IP (Dynamic state)

Nstallation:1)CAD
Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout

2)Matrix Graph:

Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout

3)Interface definition:
Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout

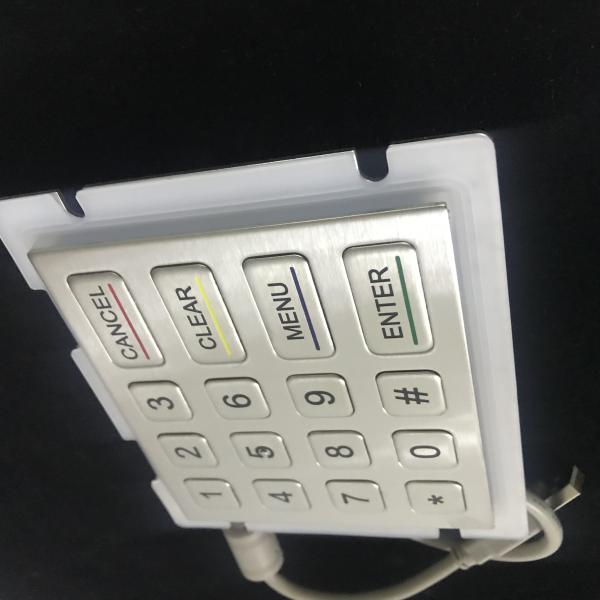

4)Frontface effect of the product
Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout

Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout

Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout

Usb Interface Industrial Numeric Keypad 16 Keys Type Compact Layout
