Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
Specifications
Brand Name :
szguangzhi
Model Number :
GZ-Z010233-001
Certification :
FDA, SGS, ROHS, LFGB, REACH
Place of Origin :
SHENZHEN CHINA
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
1000000pcs
Delivery Time :
1-20 work days
Packaging Details :
Individual product package size:235*150*50mm, Carton Size:482*320*275;
Application :
Telecommunication Equipment, Computer Keyboard, Home Appliance, ATM, Remote Controller
Product name :
Keypad, Stainless Steel ATM Keyboard, Mini usb wired 19 key digital numeric keypad, ATM PINPAD, custom numeric keypad
Warranty :
1YEAR
Weight :
1KG
Connector :
2.54mm Female Connector, 8 pin
Description

Led backlit stainless steel metal keyboard 16 keys, vending machine, charging post waterproof keyboard

Product name:Backlit Numeric Keypad

Model: GZ-Z010233-0001

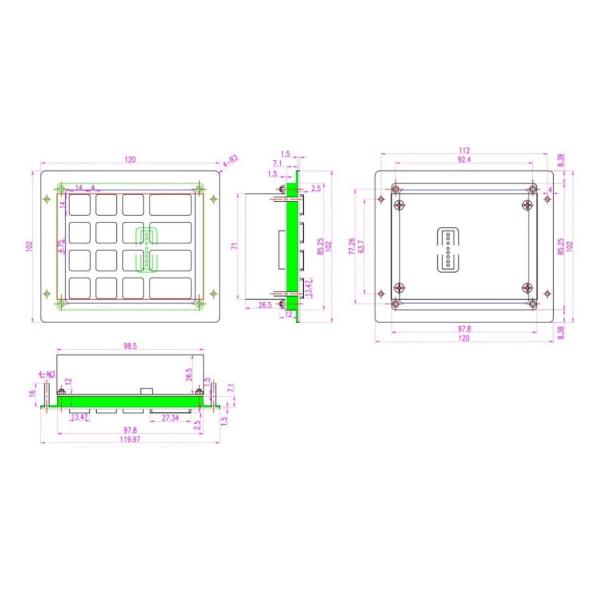

Product specification:120*102mm

Name wholesale LED Backlit Stainless Steel Metal Keypad with 16 Keys
Place of origin Guangdong, China
Brand name Long key
Material Stainless Steel
Application ATM
Protection Level IP67
Interface USB/PS2,RS232

Features:

Ø Keypad made of high quality stainless steel

Ø Customizable layout, dimension and installation design

Ø 16 keys: 10 numeric keys and 6 function keys

Ø Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof

Ø Ports for optional eight external function keys, beeper and guide light

Ø IP Protection Class IEC/DIN/EN/ 60529:IP65

Ø IK Protection Class DIN EN 50102:IK07

Main Application:

Kiosk, Info Terminal, Vending machine, Access control, Industrial control, Gaming machine.

Reliability and Performance Data

Ø Key lifetime > 3,000,000 cycles per key

Ø Force on keys: 2.5~3.5 N

Ø Key travel: >0.45mm

Ø Wide voltage input: 5V DC +/- 10%

Ø Running lifetime > 10 years

Environment Requirements

Ø Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Ø Operating temperature range: 0℃- 60℃

Ø Storage temperature range: –25℃ - 80℃

Ø Relative humidity: 30%~90%

Ø Atmospheric pressure: 60~106 KPa

Vending Machine Backlit Numeric Keypad Customizable Layout Shake Proof
