Laser Engraving Industrial Numeric Keypad For Industrial Equipment Control
Laser Engraving Industrial Numeric Keypad For Industrial Equipment Control
Specifications
Brand Name :
guangzhi
Model Number :
GZ-B005020-009
Certification :
CE, FCC, CE and FCC certified, RoHS
Place of Origin :
SZENZHEN CHINA
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
1-20work days
Packaging Details :
Individual product package size:235*150*50mm, Carton Size:482*320*275;
Connection :
USB,PS2,R232,8P
Material :
stainless steel
Application :
ATM, self-service equipment, game consoles, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.
Size :
87.5*91.5mm
Storage temperature :
-40°C to +85°C (-40°to 185°F), -40°C (-40°F) to +70°C (158°F)
Description

Designed industrial metal numeric keyboard with alphanumeric buttons

Product Name:Industrial Numeric Keypad

Product P/N:GZ-B005020-009

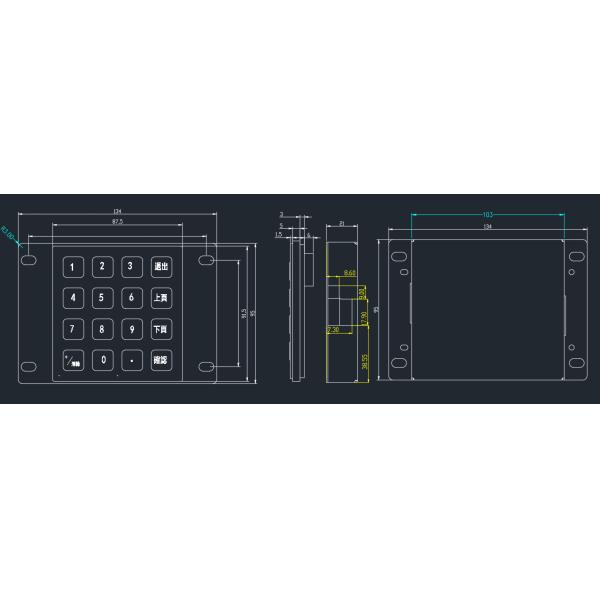

Product Size:87.5*91.5mm

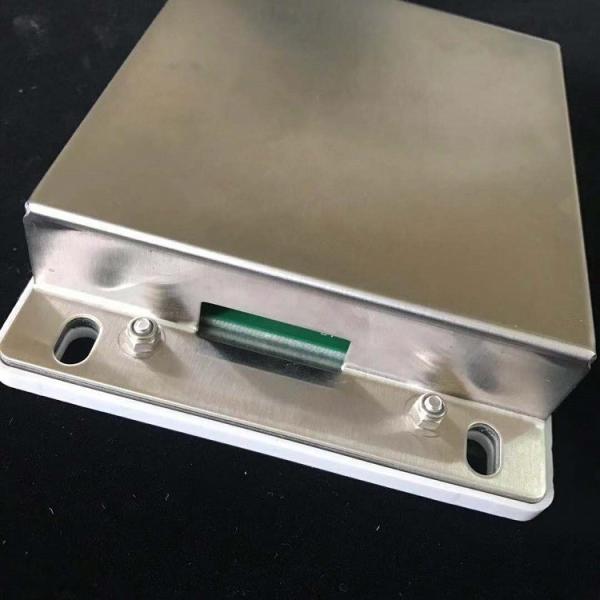

Product Description: It is stainless steel keypad of waterproof and dustproof, adopt rubber designing, and with digital keys and 6 function keys, the keys are compact layout and it with 2.0mm long-travel,. It is assembled from inside to outside, the total thickness is 28mm(Including bottom case); It adopts the design of whole stainless steel overlay, rubber keys and laser engraving, and with the precision tooling, the surface treatment beautiful and magnificent.

ELECTRICAL DATA

· Supply Voltage: +5V DC +/-5%

· Current Rating: appr. 30mA

· EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022:1988+A1:2000+A2:2003 EN55024: 1988+A1:2001+A2:2003

· Emission: EN 50081-1

· Immunity: EN 50082-1

· Lifespan>5 years

· Switch Contact Material: Carbon-on-Gold key switch technology PCB.

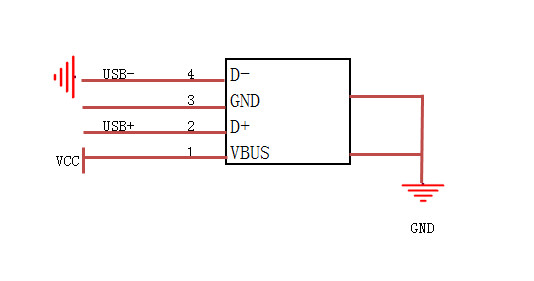

· Interface: PS2, USB available.

· OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7/win8/win9/win10, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

· Operating temperature:-20oC to +60oC

· Storage temperature: -30oC to +70oC

· Operating RH: 30-90%

· Atmospheric pressure: 60-106Kpa.

· Saline mist: 96 hours, IEC 60512-6

· Damp heat test at + 40oC: 21 days, IEC 60512-6

· Dry heat test at + 85oC: 10 days, IEC 60512-6

Laser Engraving Industrial Numeric Keypad For Industrial Equipment Control

Laser Engraving Industrial Numeric Keypad For Industrial Equipment Control

Laser Engraving Industrial Numeric Keypad For Industrial Equipment Control

Laser Engraving Industrial Numeric Keypad For Industrial Equipment Control
