Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface
Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface
Specifications
Brand Name :
guangzhi
Model Number :
GZ-Z014013
Certification :
CE, FCC, CE and FCC certified, RoHS
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
To be quoted
Payment Terms :
T/T, Paypal
Supply Ability :
100000pcs
Delivery Time :
10-20 work days
Packaging Details :
Outer box package includes: 20pcs / 1 outer box, outer box label
Button height :
4mm
Connection :
Wireless Bluetooth
Material :
Stainless steel 304
Button :
stretch hollow key
Interface :
plug and play USB interface
Description

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface

Wireless 20 Stretched Keys 4mm Industrial Numeric Keypad

Product model of numeric keyboard: GZ-Z014013
Product size of the numeric keypad: 114*83.5mm
Stainless steel metal keyboard product description: The keys are stretched keys, can be backlit (LED lights), the key layout is compact, the key stroke is 0.5mm, the installation method is from the inside to the outside, the whole thickness is: 17mm, stainless steel panel and laser engraved button design , Precise and accurate mold matching, beautiful and generous surface treatment;

Digital USB keypad application: mainly used for unattended network self-service terminals and information kiosks in public places, bank self-service terminals, self-service car washing machines, automatic ticket vending machines, automatic teller machines, Internet public telephones, industrial consoles, industrial and mining industry keyboards, Public information kiosks, pump test stands, gas stations, game consoles, etc.

Parameters of the metal password keypad:


Number of keys

20 keys

Panel thickness

1.5mm

Height of key protrusion

2.5mm

Key stroke

0.5mm

Interface

USB, PS2, R232, R485

Button elastic technology

rted gold-plated pot slices

Installation method

Embedded

Operating system support

DOS / Windows95 / 98 / NT / ME / 2000/2003 / XP / Vista / 7, 8, 10 Linux, Mac, etc.

Expected product life

>5 years

Protection level

IP65 (front panel)

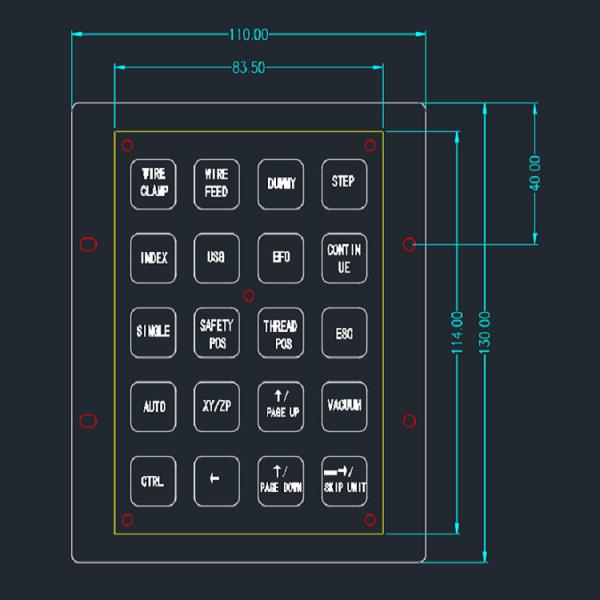

CAD drawing of self-service equipment keyboard:

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface

The front physical picture of the numeric metal keyboard:

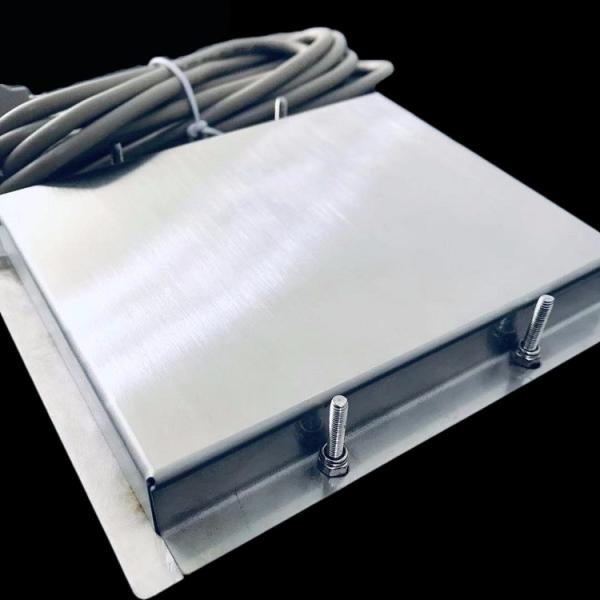

The physical picture of the back of the waterproof stainless steel keyboard:

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface

Side view of dustproof keyboard:

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface


USB connection line diagram of riot metal keyboard:

Kiosk 20 Stretched Keys Industrial Metal Keyboard With USB Interface
