Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing
Specifications
Brand Name :
Porous
Model Number :
Ti-6Al-4V
Certification :
ISO9001/Product Quality Certificate
Place of Origin :
Deyang, China
MOQ :
5KG
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
3-5 working days
Product Name :
Low oxygen 3D printing of spherical titanium alloy Ti 6Al 4V powder for MIM/3D printing
Titanium Content :
Bal.
Powder Shape :
Spherical
Production process :
EIGA
Oxygen content :
≤1000ppm
Tensile Strength :
1120-1000 Mpa
Package :
Vacuum bottle
Description

Low oxygen 3D printing of spherical titanium alloy Ti 6Al 4V powder for MIM/3D printing

The company uses electrode induction melting atomization (EIGA) powder production methods to produce spherical powders of titanium alloys such as TC4 (Ti-6A1-4V), TA15, TC11, TC18, TINI, TIAL, and titanium based composite materials. These powders have the characteristics of low impurity content, good fluidity, high batch stability, and excellent matching, and can be matched with various powder equipment on the market.


Particle size: 15-53um, 15-45um, 53-150um customized

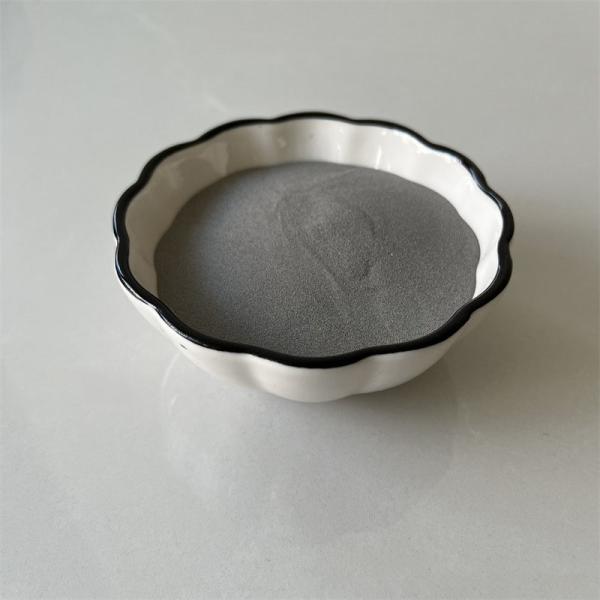

Product Appearance: Grey spherical powder;
Product features: high purity, complete specifications, controllable particle size, easy sintering, good formability, stable quality Particle size range: Specific production can be carried out according to customer requirements;

Low Oxygen Ti 6Al 4V Powder MIM Metal Powder For 3D Printing

Product specifications

典型产品
Typical Product		 TC4(Ti-6Al-4V)
规 格
Specifications		 0-25 0-45 15-53 53-150 15-53 53-150
粒度分布/μm
Particle Sizo
Distrnibution/μm		 D10 7-12 12-17 18-23 62-67 20-30 55-65
D50 10-15 27-32 32-37 82-87 35-40 95-110
D90 18-23 45-50 55-60 130-140 50-55 140-155
球形度
Sphericity		 ≥94% ≥93% ≥93% ≥93% ≥95% ≥95%
霍尔流速/(s/50g) Flowability/(s/50g) ≤40 ≤35 ≤30 ≤25
延伸率
Elongation rate		 1080-1130Mpa
屈服强度
Yielding strength		 16-20%
氧含量/(ppm)
Oxygen Content/(ppm)		 <1000ppm (600-1600ppm Available)
制备工艺
Peparation Methog		 EIGA
化学成分(wt.%)
ChemicalComponent		 Al:5.5~6.75;V:3.5~4.5;Fe≤0.3;C≤0.08;N≤0.05;H≤0.015;Ti:Bal
技术标准
Technology Standard		 AMS4998,AMS4930,AMS4928,ASTM B348,ASTM F136
ASTM F2924,ASTM F3001,GBT 3620,GBT13810,Gr.5,Gr.23

Product Quality Report
