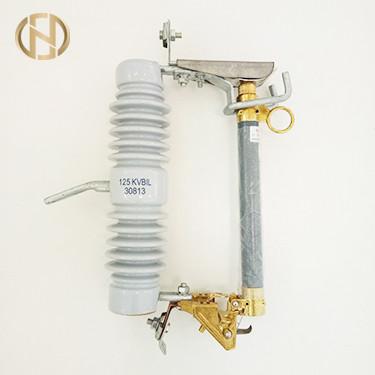

10kV - 35kV Composite Pillar Drop Out Fuse For Overhead Transmission Line
10kV - 35kV Composite Pillar Drop Out Fuse For Overhead Transmission Line
10kV - 35kV Composite Pillar Drop Out Fuse For Overhead Transmission Line
10kV - 35kV Composite Pillar Drop Out Fuse For Overhead Transmission Line
Specifications
Brand Name :
Futao
Model Number :
RW Series
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
10 pieces
Price :
$5 - $24
Payment Terms :
L/C, T/T
Supply Ability :
3000 pieces every month
Delivery Time :
30 workdays
Packaging Details :
Package by the box
Model :
RW Series
Certificate :
ISO9001 & SGS Factory Audit Report
Material :
malleable iron , aluminum,copper
Color :
Silver
Usage :
Overhead Transmission Line
Install :
easy
Description

RW Series 10kV-35kV Drop-Out Fuse for Transmission Line

Description:

The composite pillar drop fuse uses a silicone rubber epoxy fiberglass rod instead of a porcelain pillar, which has better mechanical strength and stain resistance, is free of cleaning and maintenance, and can reduce the occurrence of pollution flash. Light weight, not easy to break, easy to transport and install, in recent years in the promotion and use of the majority of users.

Conditions of Use :

1. Applicable to the ambient temperature upper limit of 40 ° C, the lower limit of -30 ° C.

2. The altitude does not exceed 1000m, and the wind speed is not more than 35m/s

3. The fuse is not suitable for the following places

a. Locations with fuel or explosion hazards

b. Locations with severe vibration or impact

c. There are different electrochemical gases and severe air pollution, smoke areas

Type Rated voltage
(kV)		 Rated current
(A)		 Breaking current
(A)		 impulse voltage
(BIL)		 Power frequency withstand voltage
(kV)		 Creepage distance
(mm)		 Weight
(kg)		 Outline size
(cm)
HRW12 12 100 6300 110 42 260 7.5 61 x 42 x 13
200 8000
HRW11 12 100 6300 110 42 350 4.4 48 x 28 x 11.5
200 8000
HRW10(F) 12 100 6300 110 42 260 4.9 53.5 x 14 x 34
200 8000
HRW3 10 100 6300 110 42 240 3.5 48 x 28 x 11.5
200 8000
HRW7 12 100 6300 110 42 240 5.5 48 x 28 x 11.5
200 8000
HRW5 35 100 6300 170 105 800 16 90 x 72 x 17
200 8000
