Specifications
Brand Name :
FUTAO
Model Number :
Q，QP
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
1 pieces
Price :
$0.5 - $3
Payment Terms :
L/C, T/T
Supply Ability :
6000pcs one month
Delivery Time :
10 workdays
Packaging Details :
Package by the box
Type :
Q，QP
Material :
Hot dip galvanized steel
Operation :
Convenient
Color :
Silver
Usage :
Overhead Line Accessories
Size :
QP7-16
Description

Q QP ball head hanging ring for electric aerial cable fitting Ploe accessories

QP, QH & Q type ball head shackle are used for connections with the socket on steel nut subjected to the top section of ball & socket-shaped suspension insulator, avoiding the stress concentration for point contact generated by the connective point. According to different usage conditions, ball head shackles are composed of ring interface type & bolt flat interface.

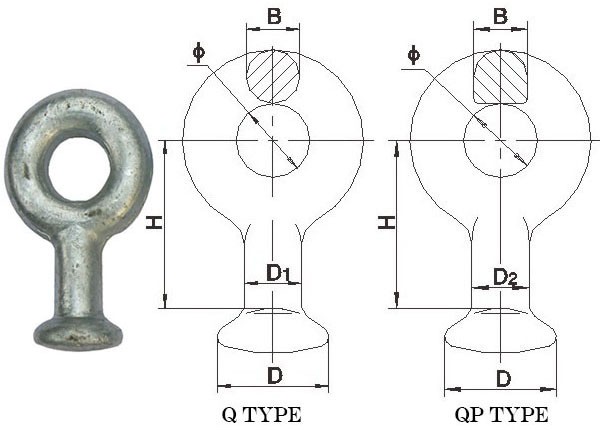

QP, QH & Q Type Ball Head Shackle

Q QP QH ball head hanging ring for electric aerial cable fitting Ploe accessories

National Grid Type No. 85 Standard Type Size of Coupling Dimension (mm) Nominal Failure Load (kn)
B D1 D Φ H
Q-7 16 16 17 33.3 22 50 70
QP-0750 QP-7 16 16 17 33.3 20 50 70
QP-1050 QP-10 16 16 17 33.3 20 50 100
QP-1260 QP-12 16 16 17 33.3 24 60 120
QP-1660 QP-16 20 18 21 41.0 26 60 160
QP-20 24 24 25 49.0 30 80 200
QP-21D 20 21 21 41.0 29 70 210
QP-2180 20 20 21 41.0 26 80 210
QP-2580 24 24 25 49.0 30 80 250
QP-30 24 28 25 49.0 39 80 300
QP-3280 24 28 25 49.0 33 80 320

National Grid Type No. 85 Standard Type Size of Coupling Dimension (mm) Nominal Failure Load (kn)
Φ D1 D C H1 H
QH-07100 QH-7 16 16 17 33.3 24 57 100 70
QH-10 16 18 17 33.3 22 60 110 100
QH-12 16 19 17 33.3 22 63 120 120
QH-16155 QH-16S 20 20 21 41.0 26 100 155 160
QH-21140 20 20 21 41.0 26 83 140 210
QH-21155 QH-21S 20 20 21 41.0 26 100 155 210
QH-32175 QH-32S 24 28 25 49.0 32 110 175 320

Type Size of Coupling Dimension (mm) Nominal Failure Load (kn) Weight (kg)
B C Φ H1 H
Q-7M 16 16 18 14 60 130 70 1.0
Q-12M 16 18 24 14 70 145 120 1.3
