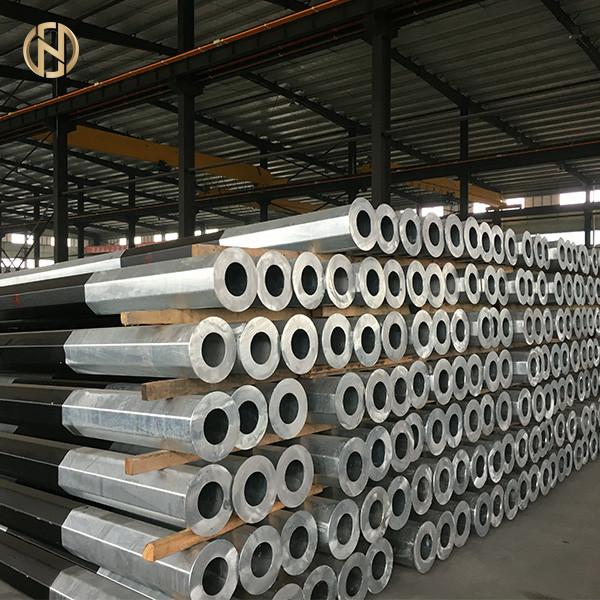

9M 30FT Tubular Steel Pole 200daN 2KN GR50 Octagonal Steel Pole
9M 30FT Tubular Steel Pole 200daN 2KN GR50 Octagonal Steel Pole
9M 30FT Tubular Steel Pole 200daN 2KN GR50 Octagonal Steel Pole
9M 30FT Tubular Steel Pole 200daN 2KN GR50 Octagonal Steel Pole
Specifications
Brand Name :
Futao
Model Number :
9M-200daN
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
2 pieces
Price :
$100 - $300
Payment Terms :
L/C, T/T
Supply Ability :
2200 pieces every month
Delivery Time :
30 - 60 workdays
Packaging Details :
40HC or OT wrap by mat or straw mat
Surface Treatment :
Hot Dip Galvanized
Height :
According to clients' request
Thickness :
2mm - 30mm
Material :
Q235 Q345 Q420 Q460 GR50 GR60 SS400
Shape :
Tubular
Color :
According to clients request
Welding :
AWS D 1.1
Description

9M 30FT Tubular Steel Pole 200daN 2KN GR50 Octagonal Steel Pole

Product Description

The products above are s9M 30FT Galvanized Tubular Steel Pole 200daN 2KN GR65 transmission poles.11KV

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc
  • Material code : GB/T1591-2008,GB/T700-2006
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:

  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications

Type9M 30FT Tubular Steel Pole 200daN 2KN GR65 octagonal steel pole Galvanized poles
Suitable UsesPower Distribution

Shape( Cross section)

Tubular, Octagonal

Power grade11kv 15kv
No of SectionOne
Length (m)9M30FT
FoundationDirect burial- 1.4-1.5m
Working Load200daN-2.0KN
Breaking Load240daN- 2.4KN 300daN-4.5KN 360daN-3.6KN 400daN -4KN
Safety Factor1.2 , 1.5, 1.8 , 2.0
MaterialASTM 572 GR50 or equal ,ASTM 572 GR65 or equal.
Minimum Yield Strength355 mpa / 450mpa
Minimum Ultimate Tensile Strength450mpa/550mpa
Max Ultimate Tensile Strength
EL %>=15%, >=18%
Top diameter(mm)80/100/120/125
Bottom diameter(mm)180/200/225/250
Min Thickness(mm)>=3mm
Tolerance of Dimensions+- 1%
EngravingName plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards

Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.

Loading Conditions
  • Maximum line deviation
0-2 degree
  • Design Wind Speed (Extreme Wind)
32m/s 125km./h
  • Circular Shape Factor
1.0
  • Maximum Deflection (Extreme Wind)
10% of overall pole length
Welding

Internal and external double welding process produces a seamless surface
Welding Standard :AWS ( American Welding Society ) D 1.1

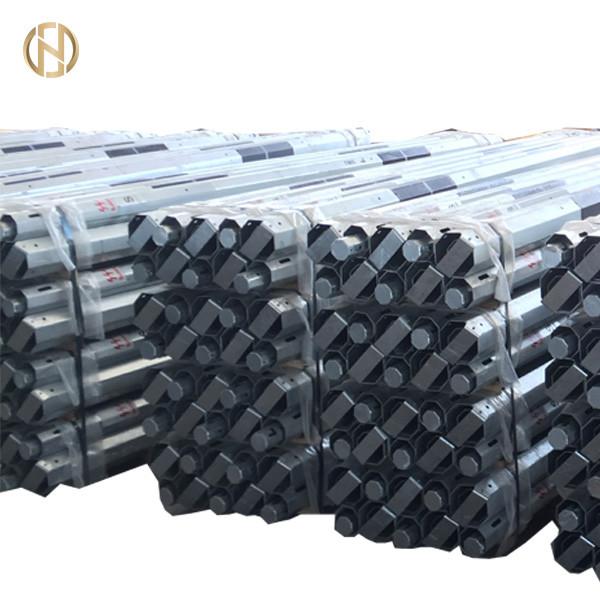

Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

9M 30FT Tubular Steel Pole 200daN 2KN GR50 Octagonal Steel Pole

FAQ

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.


Our Service

1. We will reply all your enquiries in 24 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. Customized designs are available. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.

Welcome to our factory!
