Specifications
Brand Name :
FUTAO
Model Number :
UL-7 to UL-21
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
1 pieces
Price :
$1 - $10
Payment Terms :
L/C, T/T
Supply Ability :
3000pcs one month
Delivery Time :
30 workdays
Packaging Details :
Package by the box
Type :
UL-7 to UL-21
Material :
Hot dip galvanized steel
Operation :
Convenient
Color :
Silver
Usage :
Overhead Line Accessories
Size :
UL-7 to UL-21
Description

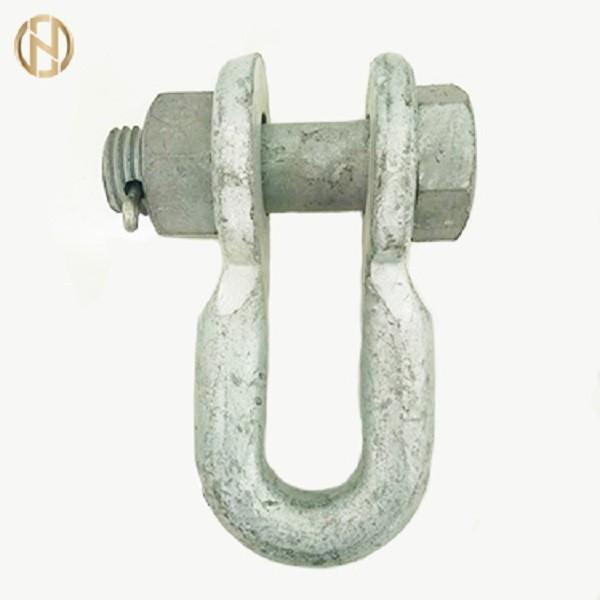

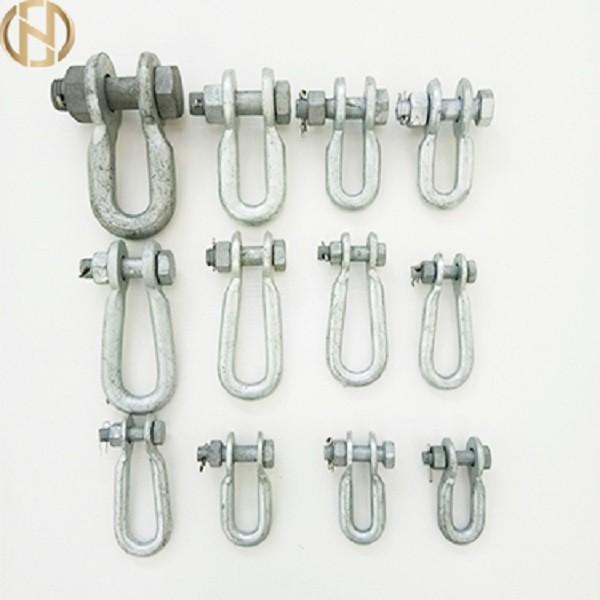

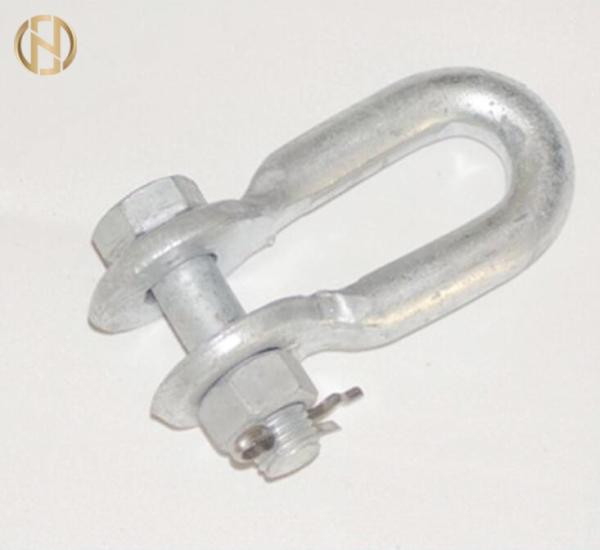

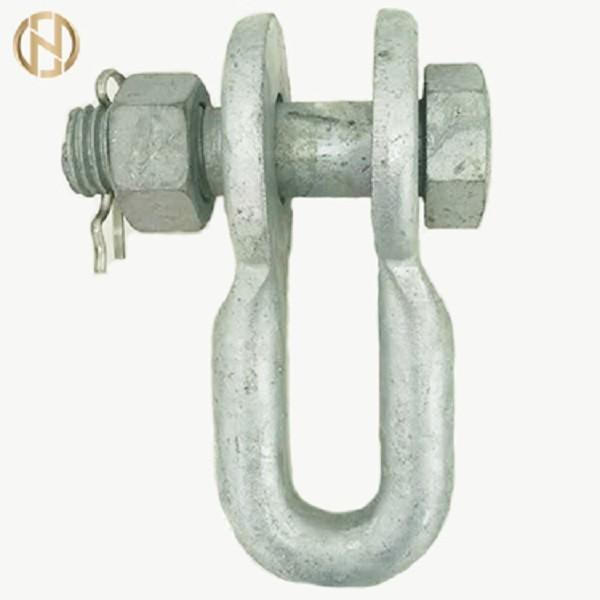

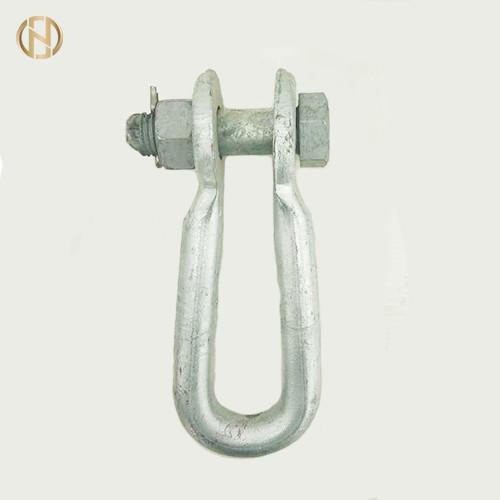

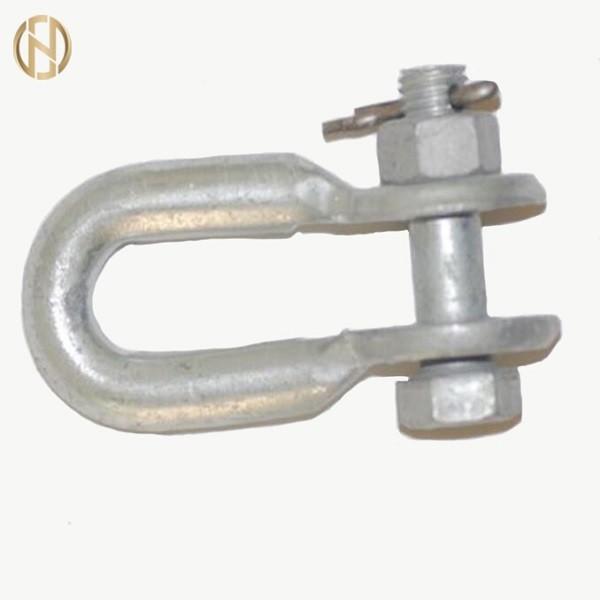

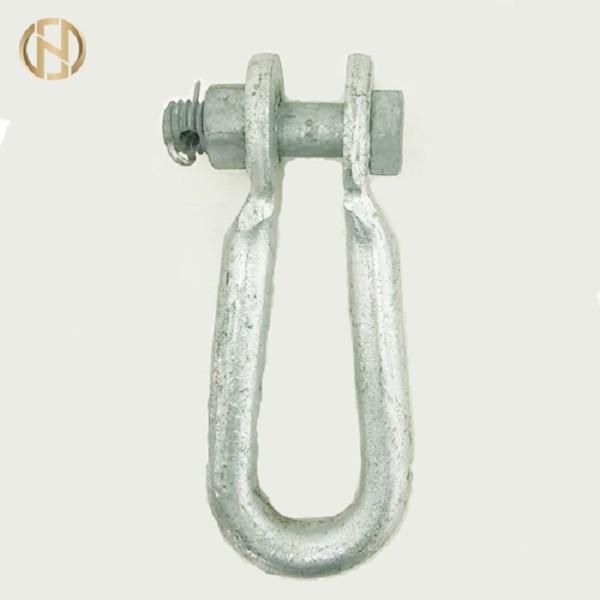

Bolt Type Anchor Shackle with safety pin U UL type Pole accessories

UL Type Anchor Shackle is used for connecting insulator string of transformer substation to overhead transmission line or fixing stranded wire to pole.

Model specifications and technical parameters for Anchor Shackle(type UL)

Silver Color Bolt Type Anchor Shackle With Safety Pin UL-7 To UL-21

Type no Dimension(mm)

Nominal failure

load(kN)

Weight

(kg)
C D H R r
UL-7 20 16 120 22 15 70 0.65
UL-10 22 18 140 24 17 100 1.01
UL-12 24 20 140 30 18 120 1.34
UL-16 26 22 140 32 19 160 1.70
UL-21 30 24 160 36 22 210 2.59
