840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE
MOQ :
1
Packaging Details :
Nude Package and fixed by steel rope,40GP container.
Delivery Time :
25days
Payment Terms :
TT/LC
Model Number :
According to requirements
Price :
USD16,000-USD23,000
Supply Ability :
8sets/month
Description

840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness

Introduction and Guarantee :

1. This machine contains our experiences in 30 years and many times improvements by our engineers.

2. In our service, we support the equipments and profiles that customers really need and including our most sincere recommends.

3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.

Applications:

Construction

Food Services

Lawn & Garden

Shelving

Automotive

Fencing

Lighting

Store Fixture

Display Industry

Furniture

Material Handling

Sporting Goods

Farming

HVAC

Mining

Transportation.etc

Specifications:

Suitable to process

colored steel plate, galvanized board

Valid width

840mm

Rollers

14groups

Rolling material

Forging steel 45#

Rolling galvanization thickness

0.3-0.9mm

Material of the cutting blade

Cr12mov

Dimensions

Approx7m*1.8m*1.2m

Power

5.5kw

Thickness of the plate

0.3-0.9mm

productivity

10m-15m/min

Diameter of the roller

76mm

Weight

About 6T

Voltage

380V 50Hz

Processing precision

Within 1.00mm

Equipment components

Man-made uncoiler,roll forming machine,

Compture control system

Hydraulic control system

Press foming cutting

Transportation

One complete equipment need one 40 feet container to hold

Advantage:

1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

4. First in quality

5. First in time

6. First in price

7. First in services

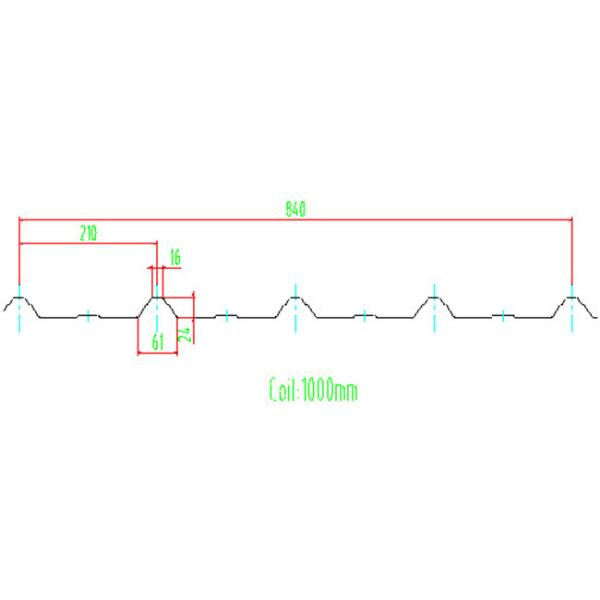

The profile drawing:

840 Roof Tile Roll Forming Machine Cr12mov 0.3-0.9mm Rolling Galvanization Thickness
